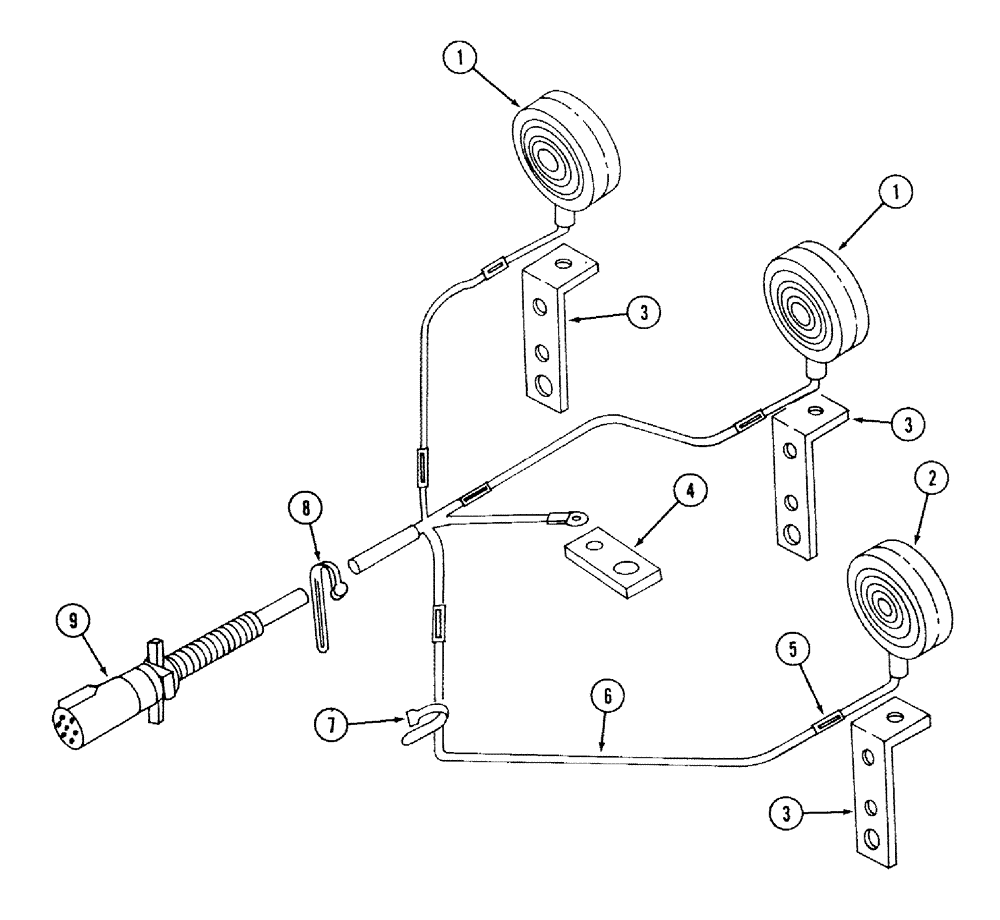

Запчасти Case IH 568 (4-01) - FLASHING WARNING LIGHTS (04) - ELECTRICAL SYSTEMS

1

199954A1

PACKAGE

LIGHT ASSEMBLY - flashing safety, amber, Inc. Bulb and REF 5

2шт.

529068

BULB,#1156, 12V, 21W

1шт.

2

ZA103734

LIGHT

ASSEMBLY - tail, red, Inc. Bulb and REF 5

1шт.

529068

BULB,#1156, 12V, 21W

1шт.

3

81101C1

BRACKET

- light mounting

3шт.

4

81100C1

STRAP

BAR - mounting

1шт.

5

56698R1

WIRE CONNECTOR

CONNECTOR - butt splice

8шт.

6

NSS

NOT SOLD SEPARAT

WIRE - 14 gauge (Cut 1 foot length from 100 foot roll marked B17724X)

1шт.

7

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon 14 in

5шт.

8

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, nylon

3шт.

9

81102C1

HARNESS

- lighting

1шт.
