Запчасти Case IH 568 (9-22) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

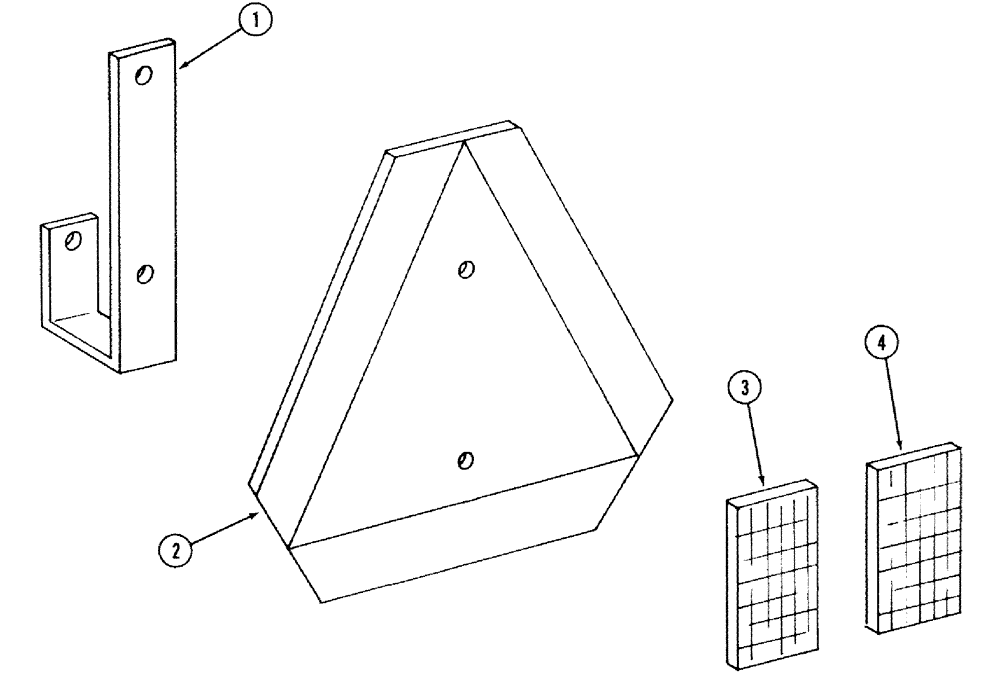

Схема запчастей Case IH 568 - (9-22) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS
2
4
3
1

Артикул

Название

Примечание

Количество

1

1960702C1

BRACKET

- SMV emblem (Replaces 81111C1)

1шт.

463-11210

SCREW,Hex Hd, #12-24 x 5/8"

- machine, hex, No. 12 NC x 5/8 inch

1шт.

463-11056

SCREW,Hex Hd, #10-24 x 3 1/2"

- machine, hex, No. 10 NC x 3-1/2 inch

1шт.

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

2шт.

225-14112

NUT,#12-24

2шт.

2

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

311858A1

DECAL

- slow moving vehicle

1шт.

3

175311C1

REFLECTOR

- red (International built machines)

2шт.

3

1284374C1

REFLECTOR,Reflector Red

- red (Case IH built machines)

2шт.

4

174732C1

REFLECTOR

- amber (International built machines)

1шт.

4

1284365C2

REFLECTOR

- amber (Case IH built machines)

1шт.

Выбрано товаров: 11
