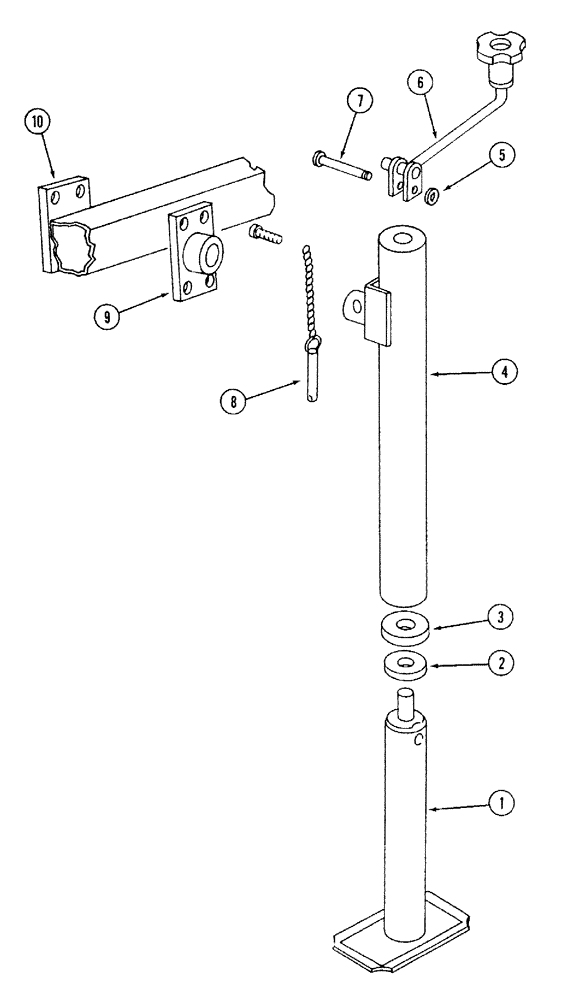

Запчасти Case IH 568 (9-20) - JACK (09) - CHASSIS/ATTACHMENTS

1256363C91

JACK ASSY.

JACK ASSEMBLY - top crank, Inc. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

2

59113C1

THRUST WASHER

- thrust

1шт.

3

1256370C91

ROLLER BEARING,0.5" ID x 1.42" OD x 0.45"

BEARING - roller

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - outer

1шт.

5

1256368C1

NUT

- push on

1шт.

6

1256366C1

CRANK

ASSEMBLY - jack

1шт.

7

1256367C1

PIN

- crank

1шт.

8

1256369C1

CHAIN (AG)

CHAIN ASSEMBLY - with pin

1шт.

9

95615C1

JACK

BRACKET - jack mounting

1шт.

10

63130C1

BAR

PLATE - jack mounting

1шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
