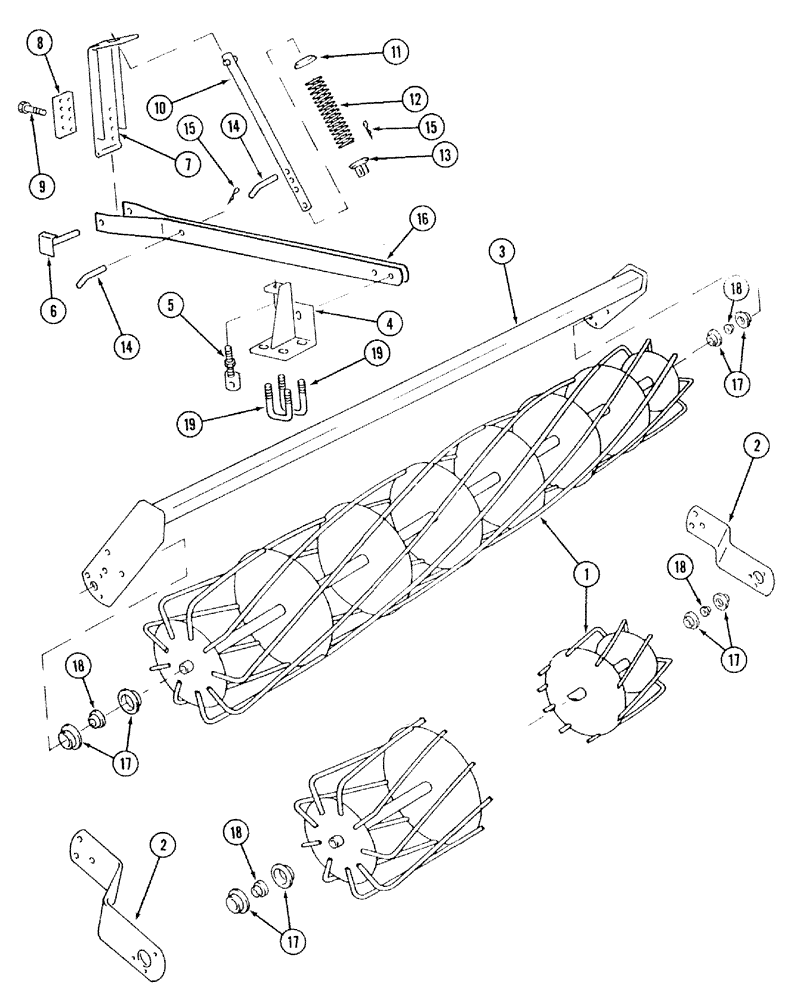

Запчасти Case IH 568 (9-19) - ROLLING BASKET MULCHER (09) - CHASSIS/ATTACHMENTS

1

1265740C1

CONTAINER

BASKET - 36 inch (6 row machines)

8шт.

1

1265740C1

CONTAINER

BASKET - 36 inch (8 row machines)

5шт.

1

1256478C1

CONTROL

BASKET - 48 inch (4 row machines)

3шт.

1

1256478C1

CONTROL

BASKET - 48 inch (8 row machines)

2шт.

1

1256480C1

CONTROL

BASKET - 60 inch (6 row machines)

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

2

1256485C1

BRACKET

- mulcher (4 row machines)

6шт.

2

1256485C1

BRACKET

- mulcher (6 row machines)

10шт.

2

1256485C1

BRACKET

- mulcher (8 row machines)

14шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch

3шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

3шт.

3

1265739C1

CARRIER

- basket, 36 inch (6 row machines)

4шт.

3

1265739C1

CARRIER

- basket, 36 inch (8 row machines)

5шт.

3

1256477C1

CARRIER

- basket, 48 inch (4 row machines)

3шт.

3

1256477C1

CARRIER

- basket, 48 inch (8 row machines)

2шт.

3

1256479C1

CARRIER

- basket, 60 inch (6 row machines)

1шт.

4

95618C1

BRACKET

PIVOT - adjustable (4 row machines)

3шт.

4

95618C1

BRACKET

PIVOT - adjustable (6 row machines)

5шт.

4

95618C1

BRACKET

PIVOT - adjustable (8 row machines)

7шт.

5

95619C1

ADJUSTMENT SCREW

SCREW - adjustable (4 row machines)

3шт.

5

95619C1

ADJUSTMENT SCREW

SCREW - adjustable (6 row machines)

5шт.

5

95619C1

ADJUSTMENT SCREW

SCREW - adjustable (8 row machines)

7шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

6

95620C1

PIN

- arm (4 row machines)

3шт.

6

95620C1

PIN

- arm (6 row machines)

5шт.

6

95620C1

PIN

- arm (8 row machines)

7шт.

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

7

81117C1

BRACKET

- mounting (4 row machines)

3шт.

7

81117C1

BRACKET

- mounting (6 row machines)

5шт.

7

81117C1

BRACKET

- mounting (8 row machines)

7шт.

8

81116C1

CLAMP

BAR - flat clamp (4 row machines)

3шт.

8

81116C1

CLAMP

BAR - flat clamp (6 row machines)

5шт.

8

81116C1

CLAMP

BAR - flat clamp (8 row machines)

7шт.

9

1547315C1

BOLT,Hex, 5/8" - 11 x 6", Gr 2

- hex, special, 5/8 x 6 inch, 3 inch thread, grade 2, if used (Quantity of 2 per clamp)

1шт.

9

461723R1

BOLT,5/8" - 11 x 6", Grade 5

- hex, special, 5/8 x 6 inch, 4 inch thread, grade 5, if used (Quantity of 2 per clamp)

1шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, (Quantity of 2 per clamp) 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

(Qty of 2 per clamp) 5/8"-11, G5

1шт.

10

81118C1

GUIDE

- spring (4 row machines)

3шт.

10

81118C1

GUIDE

- spring (6 row machines)

5шт.

10

81118C1

GUIDE

- spring (8 row machines)

7шт.

11

80057C1

CAP

- spring, upper (4 row machines)

3шт.

11

80057C1

CAP

- spring, upper (6 row machines)

5шт.

11

80057C1

CAP

- spring, upper (8 row machines)

7шт.

12

1256472C1

SPRING

- coil (4 row machines)

3шт.

12

1256472C1

SPRING

- coil (6 row machines)

5шт.

12

1256472C1

SPRING

- coil (8 row machines)

7шт.

13

1256471C2

CAP

- spring, lower (4 row machines)

3шт.

13

1256471C2

CAP

- spring, lower (6 row machines)

5шт.

13

1256471C2

CAP

- spring, lower (8 row machines)

7шт.

14

80056C1

PIN

- (4 row machines)

6шт.

14

80056C1

PIN

- (6 row machines)

10шт.

14

80056C1

PIN

- (8 row machines)

14шт.

15

480523R1

HAIR PIN COTTER

9/64" dia (Quantity of 1 per pin)

1шт.

16

81119C1

ARM

- mounting (4 row machines)

3шт.

16

81119C1

ARM

- mounting (6 row machines)

5шт.

16

81119C1

ARM

- mounting (8 row machines)

7шт.

88848

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- hex, 1/2 NF x 2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

17

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE - bearing (Quantity of 4 per basket)

1шт.

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

18

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSEMBLY - shaft (4 row machines)

6шт.

18

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSEMBLY - shaft (6 row machines)

10шт.

18

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSEMBLY - shaft (8 row machines)

14шт.

19

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

- adjustable pivot (4 row machines)

6шт.

19

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

- adjustable pivot (6 row machines)

10шт.

19

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

- adjustable pivot (8 row machines)

14шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.
