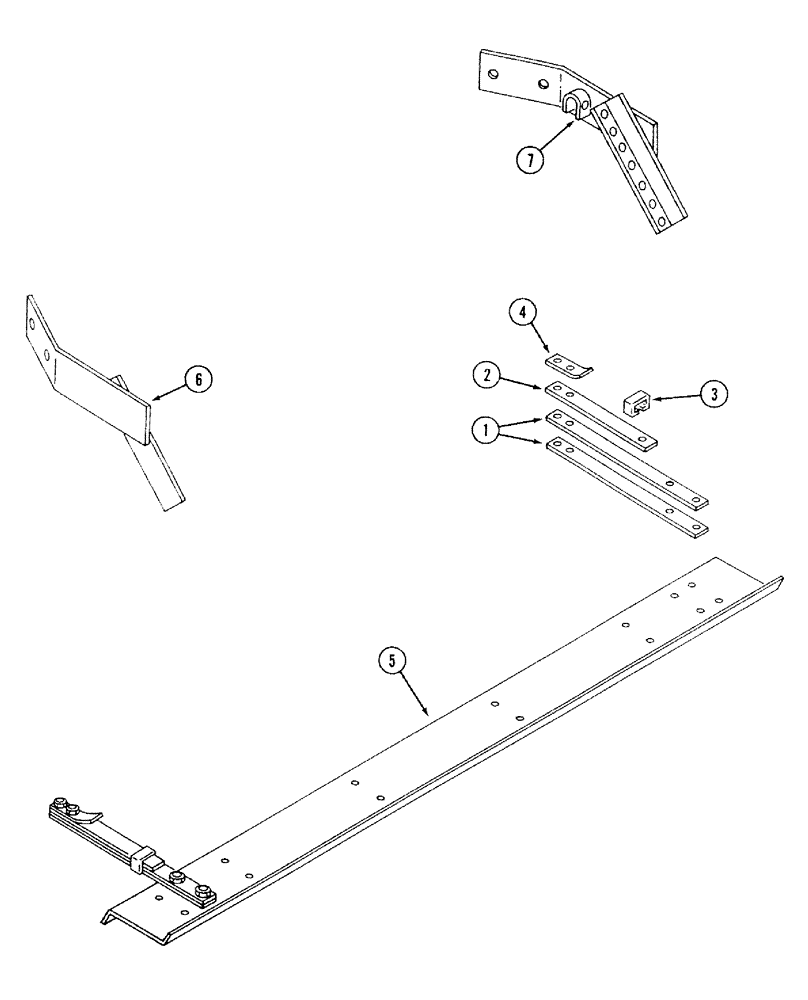

Запчасти Case IH 568 (9-18) - LEVELING BOARDS (09) - CHASSIS/ATTACHMENTS

1

62557C1

SPRING, LEAF

LEAF - long, 4 holes, 30 inch (4 row machines)

8шт.

1

62557C1

SPRING, LEAF

LEAF - long, 4 holes, 30 inch (6 row machines)

12шт.

1

62557C1

SPRING, LEAF

LEAF - long, 4 holes, 30 inch (8 row machines)

16шт.

2

62558C1

SPRING, LEAF

LEAF - short,3 holes, 20 inch (4 row machines)

4шт.

2

62558C1

SPRING, LEAF

LEAF - short,3 holes, 20 inch (6 row machines)

6шт.

2

62558C1

SPRING, LEAF

LEAF - short,3 holes, 20 inch (8 row machines)

8шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Quantity of 2 per support)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Quantity of 2 per support) 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 2 per support) 1/2"-13, G5

1шт.

3

62559C1

CLIP

- leaf spring (4 row machines)

4шт.

3

62559C1

CLIP

- leaf spring (6 row machines)

6шт.

3

62559C1

CLIP

- leaf spring (8 row machines)

8шт.

4

112509C2

BAR

SUPPORT - cap, leaf spring (4 row machines)

4шт.

4

112509C2

BAR

SUPPORT - cap, leaf spring (6 row machines)

6шт.

4

112509C2

BAR

SUPPORT - cap, leaf spring (8 row machines)

8шт.

5

1251083C1

BOARD

- leveler (4 row machines)

2шт.

5

1251083C1

BOARD

- leveler (6 row machines)

3шт.

5

1251083C1

BOARD

- leveler (8 row machines)

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Quantity of 4 per board) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Quantity of 4 per board) 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 4 per board) 1/2"-13, G5

1шт.

6

138628C2

SPRING

MOUNT - leaf spring, left

1шт.

7

138629C2

SPRING

MOUNT - leaf spring, right

1шт.
