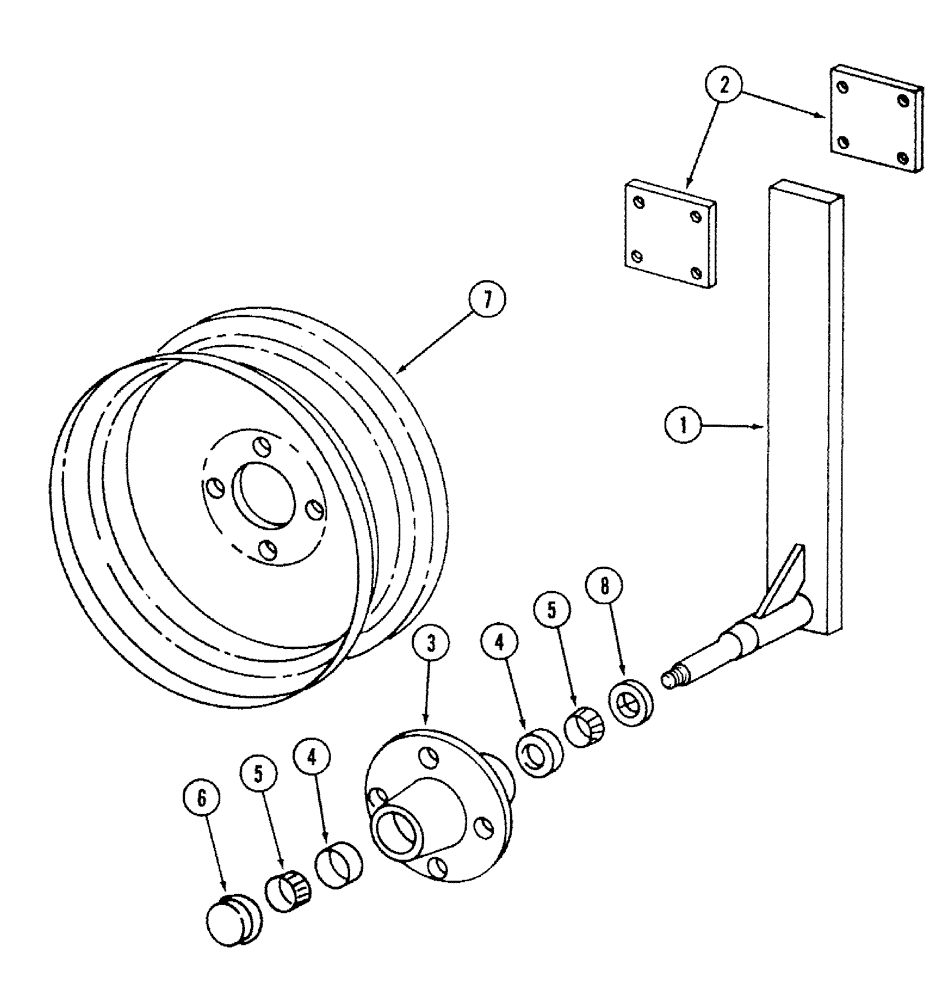

Запчасти Case IH 568 (9-17) - GAUGE WHEEL (09) - CHASSIS/ATTACHMENTS

1

74639C1

ARM

- gauge wheel

2шт.

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

- flat, 25/32 x 1-3/8 x 9/64 inch

2шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

2

74638C1

PLATE

- mounting

4шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

3

75411C91

HUB

ASSEMBLY - gauge wheel, 4 bolt, Inc. REF 4 and bolts

2шт.

437140A1

BOLT,Round, 1/2" - 20 x 1 7/32", Grade 5

- wheel hub

8шт.

4

572564R1

BEARING CUP

CUP - bearing

4шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - bearing

4шт.

6

74771C1

CAP

- hub

2шт.

7

74641C1

WHEEL

- gauge, 4 bolt

2шт.

485780R91

VALVE

- tire, TR 414

2шт.

26294

NUT

- wheel mounting

8шт.

8

T27809

SEAL

- oil (Replaces 811011C1)

2шт.
