(9-16) - GROUND WORKING TOOLS, VIBRA TINE

Запчасти Case IH 568 (9-16) - GROUND WORKING TOOLS, VIBRA TINE (09) - CHASSIS/ATTACHMENTS

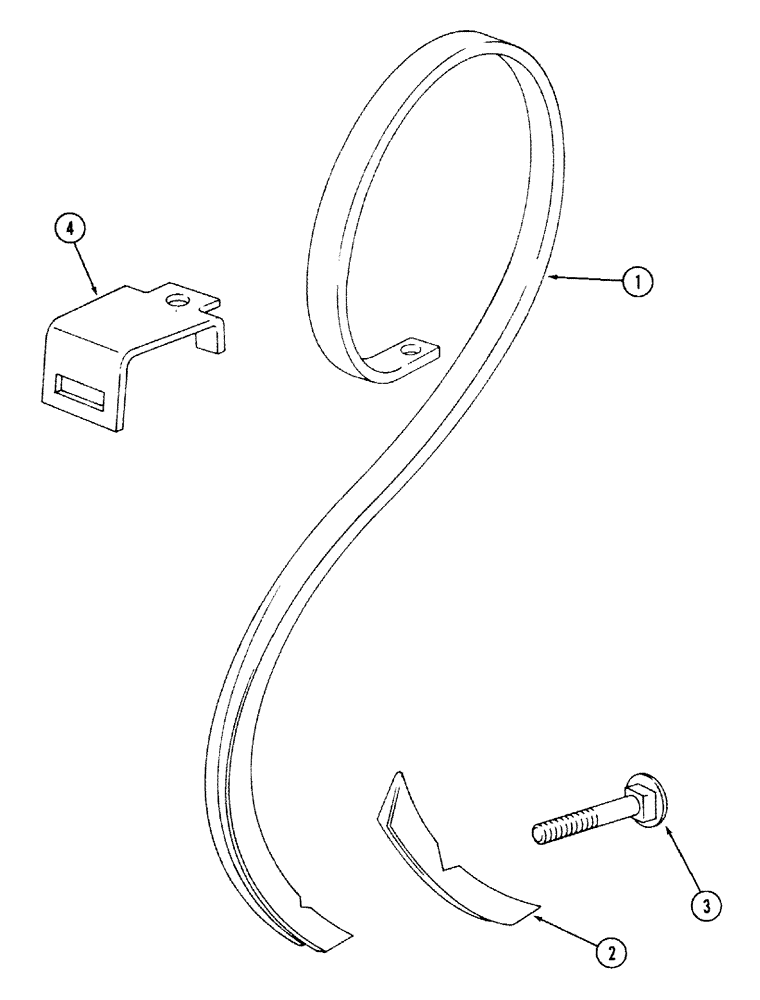

Схема запчастей Case IH 568 - (9-16) - GROUND WORKING TOOLS, VIBRA TINE (09) - CHASSIS/ATTACHMENTS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

138584C1

TINE

- ground working tool

1шт.

2

64478C1

POINT

- tine

1шт.

3

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT - tool mounting, high strength

1шт.

247780

SERRATED NUT,Flg, USR, 3/8"-16

NUT, Flg, USR, 3/8"-16

1шт.

4

138583C1

CLAMP

- tooth

1шт.

411-764

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 4", Gr 2

BOLT - round head square neck, 7/16 x 4 inch

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.
