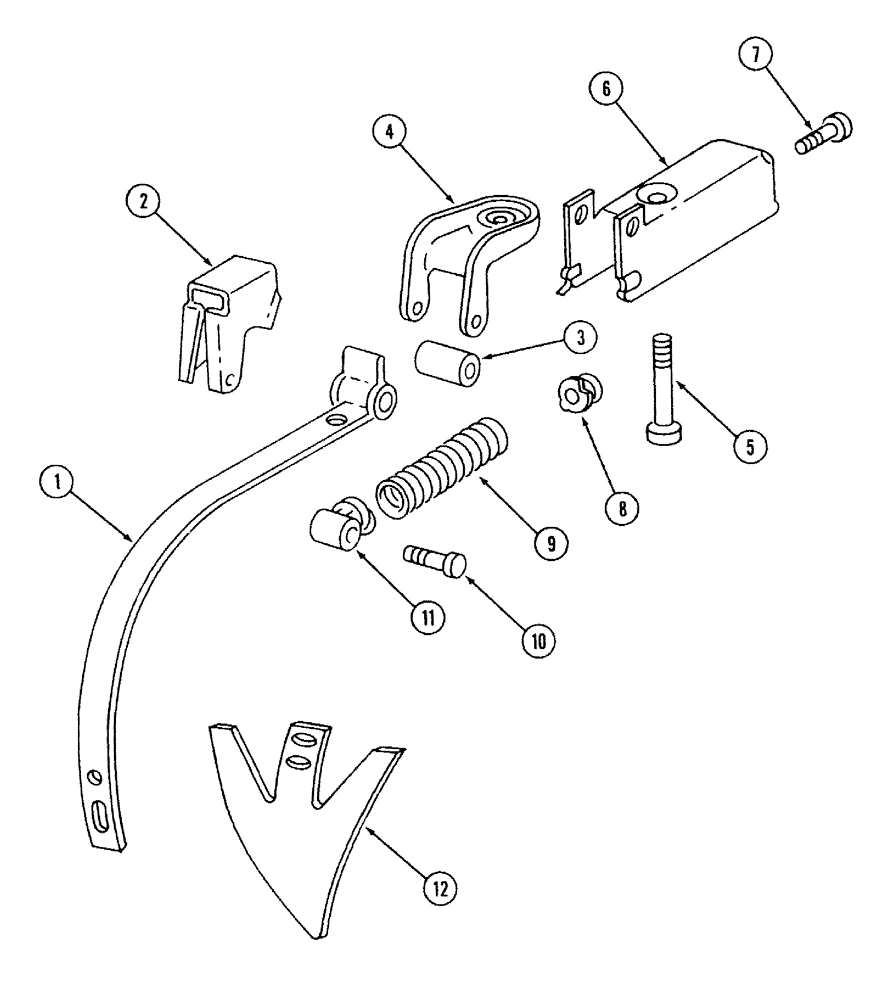

Запчасти Case IH 568 (9-15) - GROUND WORKING TOOLS, VIBRA SHANK (09) - CHASSIS/ATTACHMENTS

1

813293C2

SHANK

- ground working tool

1шт.

2

591542R1

BRACKET

CLAMP - shank

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT - hex flange lock, 1/2 inch NC

1шт.

3

811354C3

BUSHING,13.11mm ID x 19.43mm OD x 64.3mm L

- shank

1шт.

4

811353C1

CLAMP

- shank top

1шт.

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex, 1/2 NC x 3-3/4 inch

1шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

5

591540R2

BOLT,Spcl, 1/2" - 13 x 4", Gr 5

BOLT - special, 1/2 NC x 4 inch

1шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

6

811357C3

SUPPORT

BRACKET - shank

1шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

8

591547R1

PLUG

- spring

1шт.

9

591546R2

SPRING

- shank

1шт.

10

591545R1

PIN,13.08mm OD x 61.98mm L

- special

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

11

591544R1

PLUG

- spring

1шт.

12

1547095C2

SHOVEL

4.5

1шт.

12

1547097C2

SWEEP

7.5

1шт.

12

811889C1

POINT

- reversible pencil, 2 inch

1шт.

418-3722

PLOW BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT - plow, 7/16 NC x 1-3/8 inch

2шт.

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1-1/4 x 1/16 inch

2шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.
