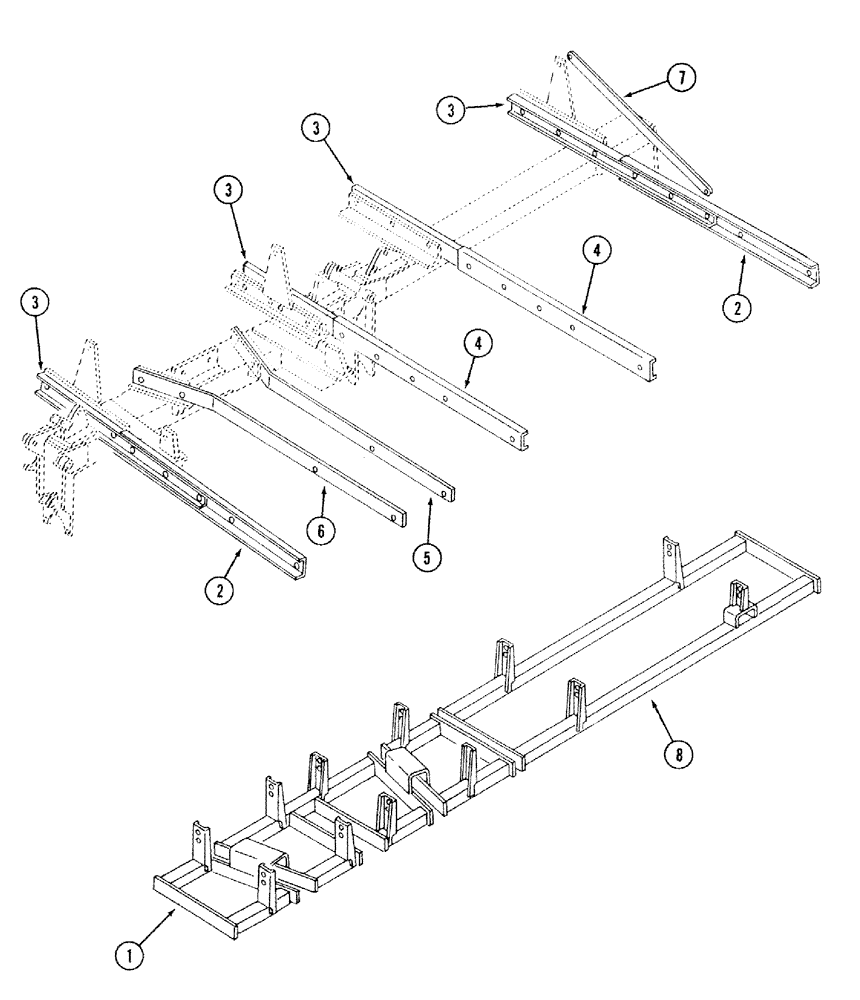

Запчасти Case IH 568 (9-13) - TOOLING EQUIPMENT FRAME AND WING FRAME, 6 ROW (09) - CHASSIS/ATTACHMENTS

1

81153C1

FRAME

- shank, center

1шт.

2

81124C1

CHANNEL

- arm, right, 50-1/2 inch

3шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

3

81125C1

CONNECTOR, ELEC

CONNECTOR - arm

6шт.

4

81123C1

CHANNEL

- arm, left, 50-1/2 inch

3шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

5

81128C1

ARM

- left

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

6

81129C1

ARM

- right

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

7

95621C1

BRACE

- frame

2шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

8

81151C1

FRAME ASSY

FRAME - shank, wing, left

1шт.

8

81152C1

FRAME ASSY

FRAME - shank, wing, right

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.
