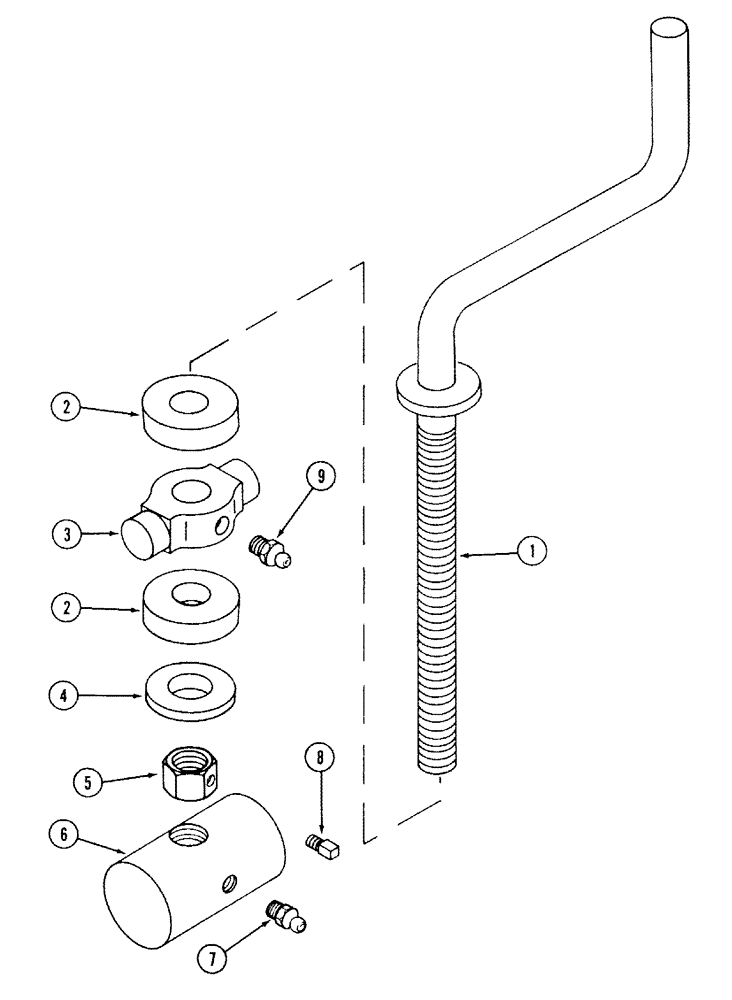

Запчасти Case IH 568 (9-11) - LEVELING SCREW (09) - CHASSIS/ATTACHMENTS

1

81114C1

CRANK

- leveling screw

1шт.

2

81113C1

THRUST BEARING

BEARING - thrust

2шт.

3

56969C1

TRUNNION

- leveling screw

1шт.

4

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

- flat, 1-5/32 x 1-3/4 x 1/8 inch

1шт.

5

56974C2

NUT

- hex jam, 1-1/8 inch

1шт.

6

468533R1

LINK

TRUNNION - threaded

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

8

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - set, square head, 5/16 NC x 1/2 inch, cup point

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
