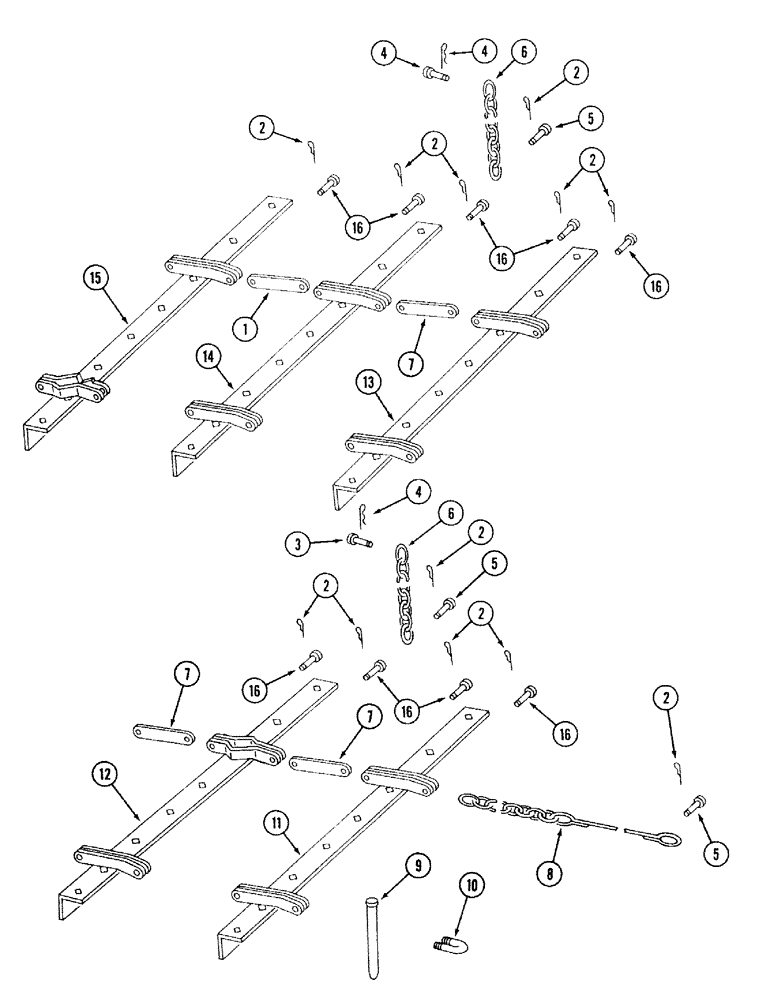

Запчасти Case IH 568 (9-10) - PEG TOOTH SECTION, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

62548C1

BAR

CONNECTOR - tooth bar, rear (4 row machines)

4шт.

1

62548C1

BAR

CONNECTOR - tooth bar, rear (6 row machines)

6шт.

1

62548C1

BAR

CONNECTOR - tooth bar, rear (8 row machines)

8шт.

2

432-1220

COTTER PIN,3/16" x 1 1/4"

(If Equipped) 3/16" x 1 1/4"

1шт.

2

231-14410

NUT,5/8"-11, GB

NUT, LOCK, (If Equipped) 5/8"-11, GB

1шт.

3

663108R1

HEADED PIN,7/16" x 2 1/2"

PIN - headed, 7/16 x 2-1/2 inch (4 row machines)

8шт.

3

663108R1

HEADED PIN,7/16" x 2 1/2"

PIN - headed, 7/16 x 2-1/2 inch (6 row machines)

12шт.

3

663108R1

HEADED PIN,7/16" x 2 1/2"

PIN - headed, 7/16 x 2-1/2 inch (8 row machines)

16шт.

4

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

5

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch (4 row machines) (If Equipped)

8шт.

5

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 x 2-1/4 inch (If Equipped)

8шт.

5

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch (6 row machines) (If Equipped)

12шт.

5

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 x 2-1/4 inch (If Equipped)

12шт.

5

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch (8 row machines) (If Equipped)

16шт.

5

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 x 2-1/4 inch (If Equipped)

16шт.

6

62541C1

CHAIN - proof coil, 5/16 inch (Use 20 links from 75 foot roll marked ZAN 4030 336)

1шт.

7

62547C1

BAR

CONNECTOR - tooth bar (4 row machines)

12шт.

7

62547C1

BAR

CONNECTOR - tooth bar (6 row machines)

18шт.

7

62547C1

BAR

CONNECTOR - tooth bar (8 row machines)

24шт.

8

138609C1

CHAIN

- center harrow pull (4 row machines)

2шт.

8

138585C1

CHAIN (AG)

CHAIN - center harrow pull (6 row machines)

2шт.

8

138585C1

CHAIN (AG)

CHAIN - center harrow pull (8 row machines)

4шт.

8

138586C1

CHAIN (AG)

CHAIN - wing harrow pull (4 row machines)

2шт.

8

138586C1

CHAIN (AG)

CHAIN - wing harrow pull (6 and 8 row machines)

4шт.

9

62576C1

TOOTH

- peg (4 row machines)

80шт.

9

62576C1

TOOTH

- peg (6 row machines)

120шт.

9

62576C1

TOOTH

- peg (8 row machines)

160шт.

10

62551C1

U-BOLT,3/8" - 16 x 1.9", Carbon Steel

- tooth mounting (Quantity of 1 per tooth)

1шт.

492-11038

LOCK WASHER,3/8"

(Quantity of 2 per U-bolt) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

(Quantity of 2 per U-bolt) 3/8"-16, G5

1шт.

11

62552C1

BAR

- tooth, number 1 (4 row machines)

2шт.

11

62552C1

BAR

- tooth, number 1 (6 row machines)

3шт.

11

62552C1

BAR

- tooth, number 1 (8 row machines)

4шт.

12

62553C1

BAR

- tooth, number 2 (4 row machines)

2шт.

12

62553C1

BAR

- tooth, number 2 (6 row machines)

3шт.

12

62553C1

BAR

- tooth, number 2 (8 row machines)

4шт.

13

62554C1

BAR

- tooth, number 3 (4 row machines)

2шт.

13

62554C1

BAR

- tooth, number 3 (6 row machines)

3шт.

13

62554C1

BAR

- tooth, number 3 (8 row machines)

4шт.

14

62555C1

BAR

- tooth, number 4 (4 row machines)

2шт.

14

62555C1

BAR

- tooth, number 4 (6 row machines)

3шт.

14

62555C1

BAR

- tooth, number 4 (8 row machines)

4шт.

15

62556C1

BAR

- tooth, number 5 (4 row machines)

2шт.

15

62556C1

BAR

- tooth, number 5 (6 row machines)

3шт.

15

62556C1

BAR

- tooth, number 5 (8 row machines)

4шт.

16

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

PIN - headed, 5/8 x 2 inch (If Equipped)

1шт.

Bolt and Nut may be used in place of REF 16 Pin 439-11032. Bolt is 426-1036. Nut is 231-14410

1шт.

16

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 x 2-1/4 inch (If Equipped)

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, (If Equipped) 5/8"-11, GB

1шт.
