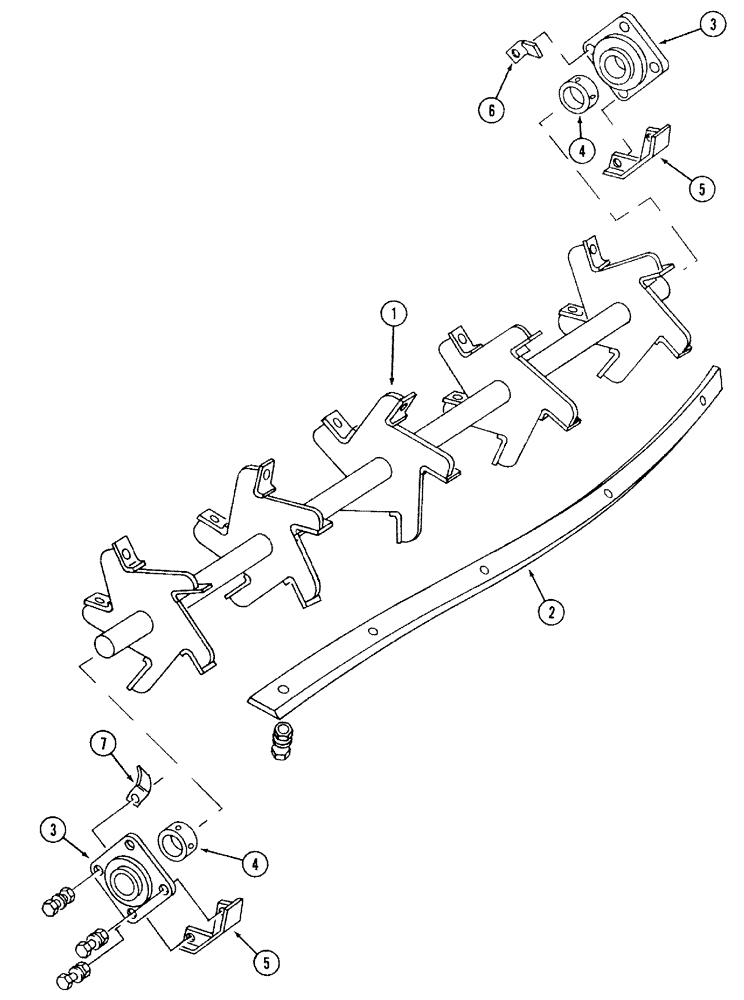

Запчасти Case IH 568 (9-09) - REEL (09) - CHASSIS/ATTACHMENTS

1

138575C1

REEL

- (4 row machines)

2шт.

1

138575C1

REEL

- (6 row machines)

3шт.

1

138575C1

REEL

- (8 row machines)

4шт.

2

62560C1

CUTTER BAR

BLADE - (4 row machines)

10шт.

2

62560C1

CUTTER BAR

BLADE - (6 row machines)

15шт.

2

62560C1

CUTTER BAR

BLADE - (8 row machines)

20шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Quantity of 5 per blade) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, (Quantity of 5 per blade) 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

(Qty of 5 per blade) 5/8"-11, G5

1шт.

3

ST3012A

FLANGED BEARING,49.22mm ID

BEARING - flange (Quantity of 2 per reel)

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

4

618032R11

COLLAR

- bearing, with set screw (Quantity of 2 per reel)

1шт.

5

1253966C1

GUARD

- bearing (Quantity of 2 per reel)

1шт.

6

81098C1

GUARD

- lubrication fitting, left (Quantity of 4 per reel)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

81099C1

GUARD

- lubrication fitting, right (Quantity of 4 per reel)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
