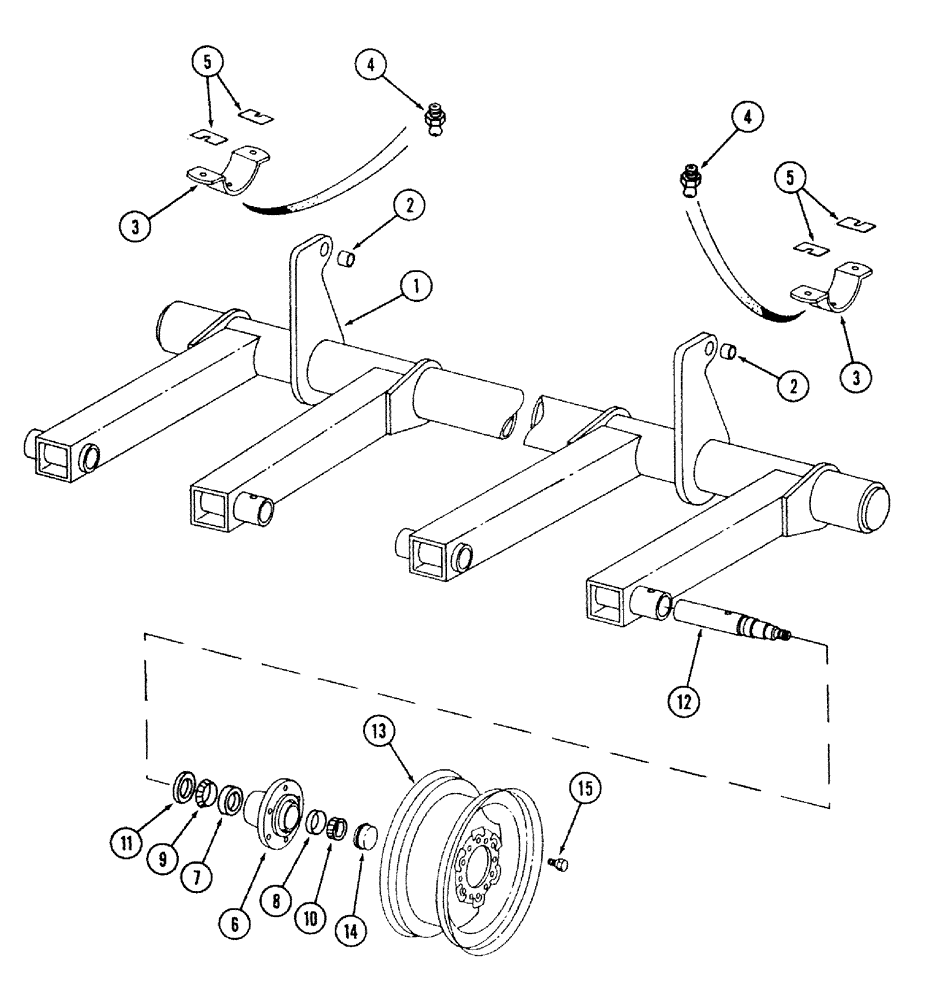

Запчасти Case IH 568 (9-08) - AXLE, WHEEL AND HUB, 8 ROW (09) - CHASSIS/ATTACHMENTS

1

81156C91

AXLE

- wheel, Inc. 2

1шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

2

95617C1

BUSHING

- axle pivot

2шт.

3

138574C1

CLAMP

- axle mounting, half

4шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

8шт.

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

425-1012

NUT,3/4"-10, G5

8шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

5

1253964C1

SHIM

- 11 gauge

1шт.

5

1253965C1

SHIM

- 16 gauge

1шт.

6

62509C1

HUB

ASSEMBLY - wheel, Inc. 7, 8

4шт.

7

478793R1

BEARING CUP

CUP - bearing, inner

4шт.

8

651817R1

BEARING CUP

CUP - bearing, outer

4шт.

9

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE - bearing, inner

4шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

4шт.

11

95616C1

PACKAGE

KIT - seal and wear sleeve

4шт.

12

1960701C1

SPINDLE

- wheel

4шт.

495-31094

WASHER,0.94" ID x 2" OD x 0.17" Thk

- flat, 15/32 x 2 x 9/64 inch

4шт.

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 NF

4шт.

86523851

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

13

481344R91

WHEEL

- steel 14 x 8 KB, 6 bolt, Serial Range: -1997

4шт.

13

A57879

RIM

WHEEL - steel 15 x 8 KB, 6 bolt (Replaces 486101R2), Start Serial: 1998

4шт.

387841R91

VALVE

- wheel, TR 413

4шт.

14

62510C1

CAP

- hub

4шт.

15

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

24шт.
