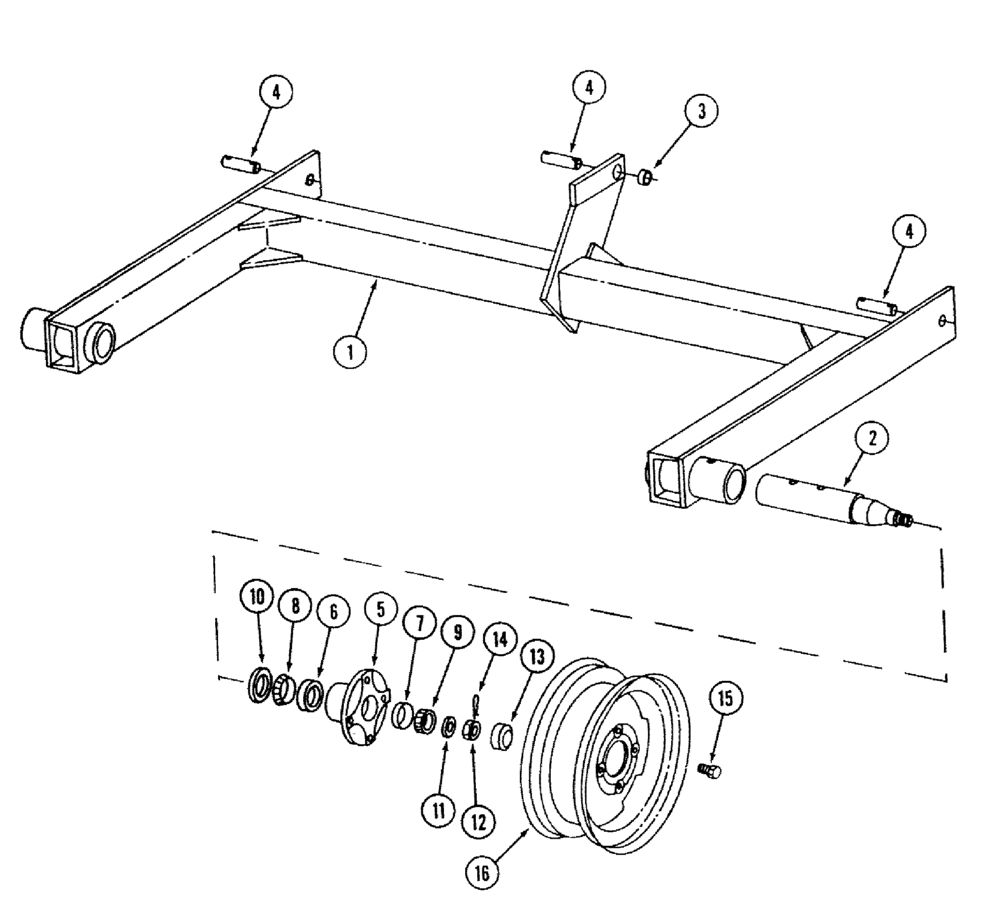

Запчасти Case IH 568 (9-06) - AXLE, WHEEL AND HUB, 4 ROW (09) - CHASSIS/ATTACHMENTS

1

138606C2

FRAME

AXLE - wheel

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

2

62824C1

SPINDLE

- axle

2шт.

3

145685C1

BUSHING

- axle pivot

1шт.

4

138626C1

PIN

- axle pivot

3шт.

5

F95416

HUB

ASSEMBLY - wheel (Replaces 460149R11), Inc. 6 , 7

2шт.

6

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

7

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

8

615818R91

BEARING, CONE

CONE - bearing, inner

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

652769R91

OIL SEAL

- oil

2шт.

11

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

12

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

2шт.

13

564773R1

CAP

- hub

2шт.

14

86523851

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

15

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

8шт.

16

1030857

WHEEL

- 15 x 4-1/2 KB, 4 bolt, Replaces 455169R92

2шт.

Uses 7.60 X 15 6Ply Tires

1шт.

387841R91

VALVE

- wheel, TR 413

2шт.
