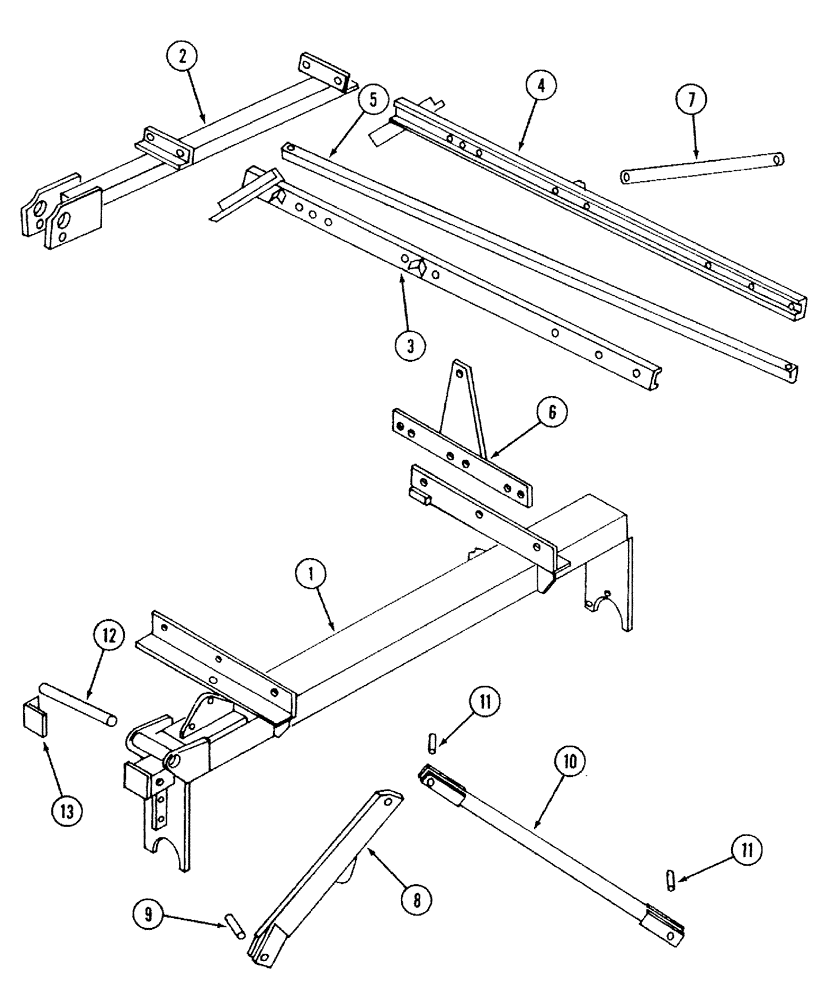

Запчасти Case IH 568 (9-04) - WING FRAME, 6 AND 8 ROW FOLDING (09) - CHASSIS/ATTACHMENTS

1

81136C1

FRAME

WING - left

1шт.

1

81137C1

FRAME

WING - right

1шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

2

81141C1

BAR

- rear wing

1шт.

3

62563C3

FRAME

ASSEMBLY - side, right

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

4

62562C3

FRAME

ASSEMBLY - side, left

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

5

62568C1

ANGLE

- diagonal, brace

2шт.

6

81109C91

SUPPORT

MAST ASSEMBLY - brace, Inc. Decals

2шт.

81142C2

DECAL

- warning

2шт.

81143C2

DECAL

- warning

2шт.

7

62564C1

BRACE

- rear bar

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

8

81146C1

ARM

- lift

2шт.

9

81150C1

PIN

- lift arm

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

10

81145C1

TUBE,986.5 mm Length

- lift

2шт.

11

62574C1

PIN

- lift tube

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

8шт.

12

62561C1

PIN

- hinge

2шт.

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

- hex, 7/16 NF x 2-1/2 inch

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

13

81148C1

SHIM

- 0.12 inch

1шт.

13

81149C1

SHIM

- 0.06 inch

1шт.
