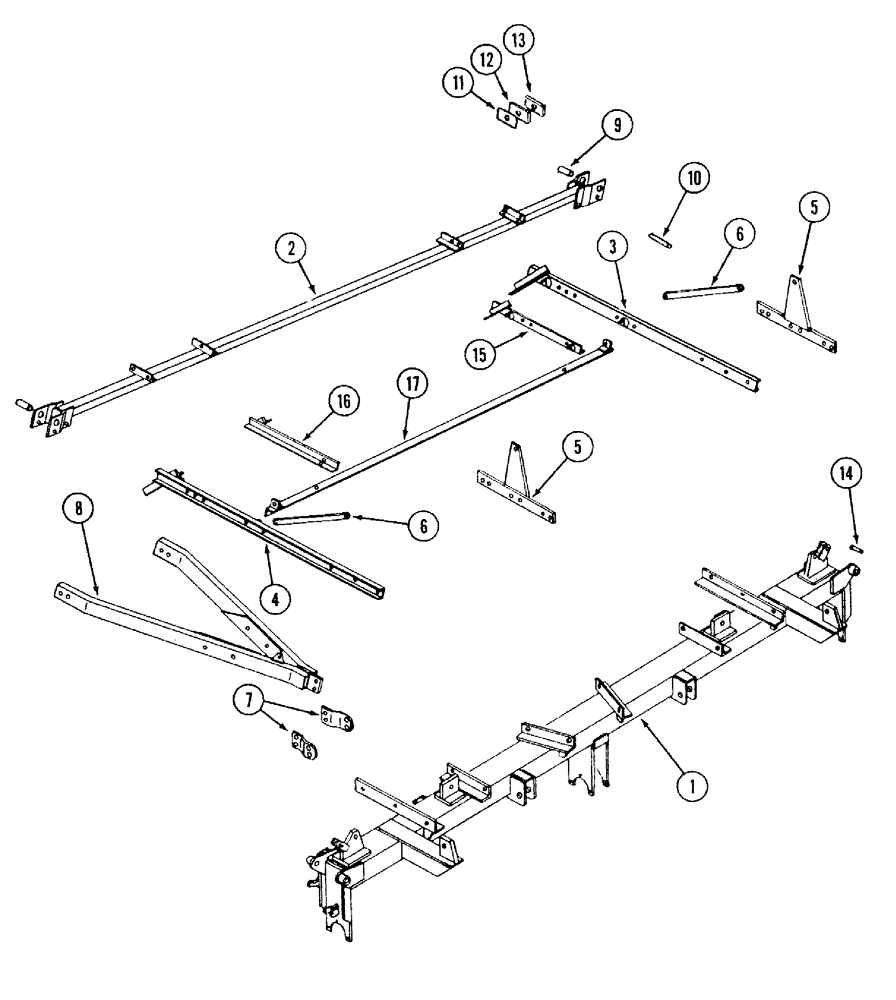

Запчасти Case IH 568 (9-03) - MAIN FRAME, 8 ROW FOLDING (09) - CHASSIS/ATTACHMENTS

1

81154C1

FRAME

- main

1шт.

2

81155C1

FRAME

BAR - rear

1шт.

3

62563C3

FRAME

ASSEMBLY - side, right

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

3шт.

425-1012

NUT,3/4"-10, G5

3шт.

4

62562C3

FRAME

ASSEMBLY - side, left

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

3шт.

425-1012

NUT,3/4"-10, G5

3шт.

5

81109C91

SUPPORT

MAST ASSEMBLY - brace, Inc. Decals

2шт.

81142C2

DECAL

- warning

2шт.

81143C2

DECAL

- warning

2шт.

6

62564C1

BRACE

- rear bar

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

7

81144C1

BRACKET

- offset

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

8

81135C1

FRAME

- A

1шт.

9

145686C1

BUSHING

- rear hinge

2шт.

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

2шт.

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

2шт.

231-41116

NUT,1"-8, GB

NUT - hex lock, 1 inch NC

1шт.

10

62573C1

PIN

- rear bar, 3/4 x 6 inch

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

11

62570C1

SHIM

- 16 gauge

1шт.

12

62569C1

SHIM

- 11 gauge

1шт.

13

101186C1

BAR

- stop

2шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

14

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

15

62566C3

CARRIER

- harrow, left

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

16

62567C3

CARRIER

- harrow, right

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

17

62565C1

BRACE

- rear cross

1шт.
