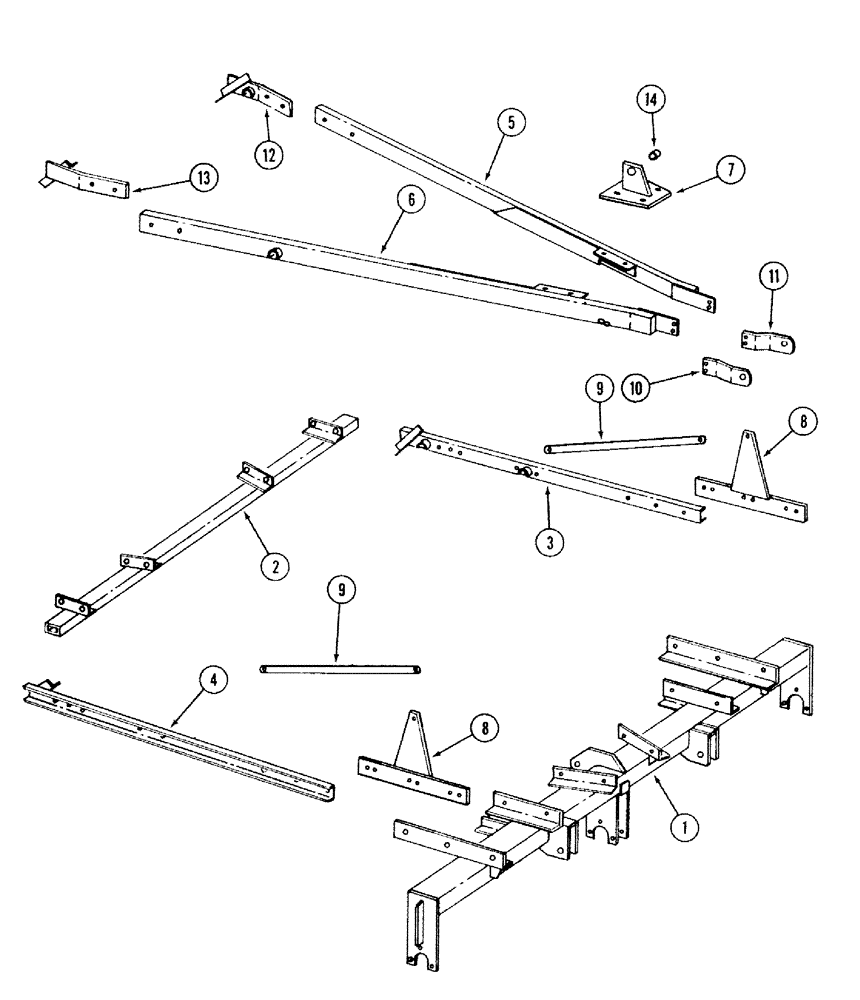

Запчасти Case IH 568 (9-01) - MAIN FRAME, 4 ROW RIGID (09) - CHASSIS/ATTACHMENTS

1

81094C1

FRAME

- main, Inc. Decal and Reflectors

1шт.

81143C2

DECAL

- warning

1шт.

1284365C2

REFLECTOR

- amber

1шт.

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

2

81097C1

BAR

- rear

1шт.

3

62562C3

FRAME

ASSEMBLY - side, left

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

3шт.

425-1012

NUT,3/4"-10, G5

3шт.

4

62563C3

FRAME

ASSEMBLY - side, right

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

3шт.

425-1012

NUT,3/4"-10, G5

3шт.

5

81095C1

FRAME

ANGLE - frame, left

1шт.

6

81096C1

FRAME

ANGLE - frame, right

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

7

138613C1

CYLINDER

ANCHOR - cylinder

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

8

81109C91

SUPPORT

MAST ASSEMBLY - brace, Inc. Decals

2шт.

81142C2

DECAL

- warning

2шт.

81143C2

DECAL

- warning

2шт.

9

62564C1

BRACE

- rear bar

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

10

81107C1

BRACKET

- offset, left

1шт.

11

81108C1

BRACKET

- offset, right

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

12

138628C2

SPRING

MOUNT - leaf spring, left

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

13

138629C2

SPRING

MOUNT - leaf spring, right

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

14

145685C1

BUSHING

- cylinder anchor

1шт.
