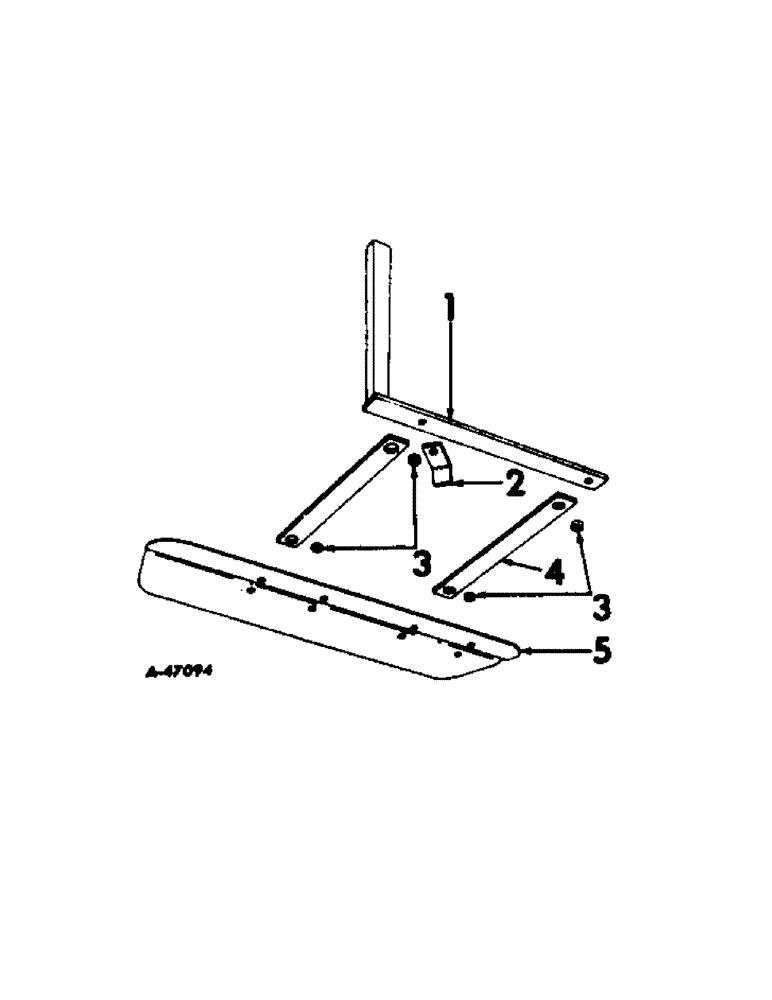

Запчасти Case IH 53 (F-21) - SHIELD

1

SUPPORT, shield inner, square part, 8-3/8 in. long, 1958 to 1960, discontinued for service

1шт.

1

464407R91

SUPPORT, shield inner, square part 6-7/8 in. long, 1960 and since

1шт.

1

523437R91

SUPPORT, shield outer, square part 9-7/8 in. long

1шт.

1

483269R91

SUPPORT, shield outer, square part is 5-1/2 in. long

1шт.

1

486388R1

SUPPORT, shield outer, square part is 4 in. long

1шт.

1

486390R1

SUPPORT

shield outer, square part is 4 in. long

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 ext-tooth lock

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

515217R1

SUPPORT

CLIP, adjusting

1шт.

3

512836R1

WASHER

BUSHING, pivot link

1шт.

4

513237R1

LINK, inner pivot, offset

1шт.

4

510754R1

LINK, outer pivot, straight

1шт.

5

526319R1

SHIELD

left, with 8-7/8 in. 26 in. long, 1959 and since

1шт.

5

526320R1

SHIELD

right, with 8-7/8 in., 26 in. long 1959 and since

1шт.

5

SHIELD, with 6-7/8 in., 24 in. long, 1956 to 1958, discontinued for service

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120328

WASHER, 3/8 C-Z med lock

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
