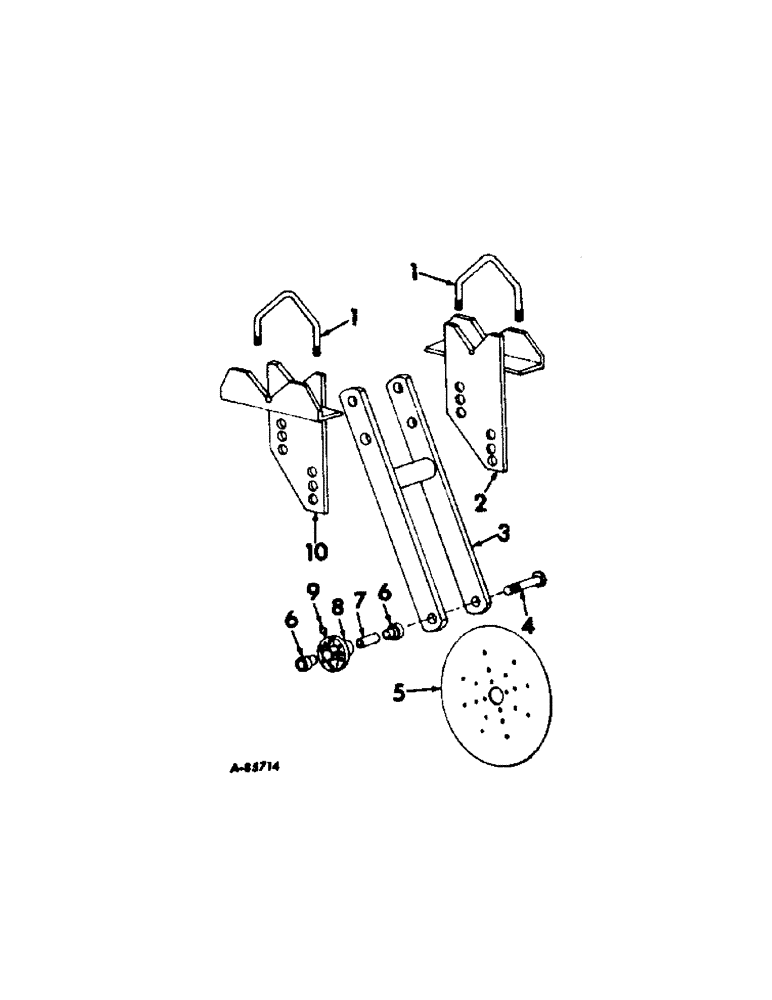

Запчасти Case IH 53 (F-15) - ROLLING GUIDE FIN

1

483302R1

U-BOLT

2шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

4шт.

2

483295R91

BRACKET ASSY, LH

1шт.

3

483299R92

FRAME

ASSY

1шт.

17525R1

BOLT

5/8 x 2 in. mach

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

17938R1

BOLT, 5/8 x 7-1/4 in. mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

478436R1

DISC

BLADE, rolling guide fin

1шт.

102635

NUT,3/8"-16, G5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

575807R1

WASHER

13/32 x 1 in. x 11 ga

4шт.

6

478434R91

BEARING

ASSY, ball

2шт.

7

478435R1

SPACER

bearing

1шт.

8

478433R1

HUB

rolling guide fin

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 straight lubrication

1шт.

10

483296R91

BRACKET ASSY, RH

1шт.
