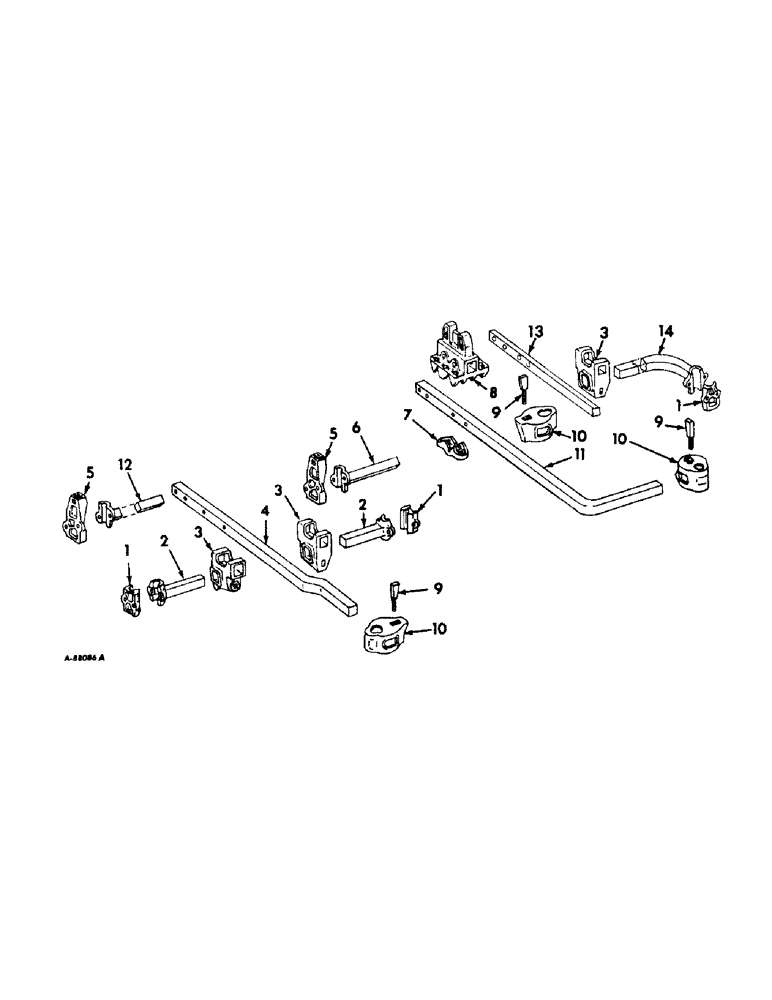

Запчасти Case IH 53 (F-12) - TOOLING EQUIPMENT, GANGS AND CLAMPS
№
Артикул
Название
Примечание
Количество
1
1779BB
CLAMP
CAP, tool bar extension, 11 for units F, G and H, 8 for unit K, 12 for unit L
1шт.
29822B
BOLT
1/2 x 2-3/4 in. sq-hd mach
22шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
22шт.
2
28236BB
CLAMP
EXTENSION, tool bar, 1-1/4 in. sq x 7-3/4 in. long, 10 for units F, G and H, 8 for unit 5, 12 for unit L
1шт.
3
522556R1
CLAMP
extension tool bar, 11 for units F, G and H, 8 for unit K, 12 for unit L
1шт.
4
483257R1
TOOL BAR, inner row, offset, 5 for units F, G, H and K, 7 for unit L
1шт.
5
483255R1
CAP
extension, 12 for units F, G, H and L, 8 for unit K
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 in. C-Z mach
12шт.
13380R1
BOLT, 5/8 x 2-1/2 in. sq-hd mach
24шт.
6
30790BA
EXTENSION
tool bar outer row, 1-3/8 in. sq x 8-5/8 in. long
2шт.
7
28256BA
CLAMLP, cap, 12 for units F, G, H and L, 8 for unit K
1шт.
18827R1
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2
5/8 x 3-1/2 in. C-Z mech
24шт.
8
483254R1
CLAMP, tool bar attaching, 7 for units F, G, H and L, 5 for unit K
1шт.
18476R1
BOLT,Hex, 1/2"-13 x 2 1/2", G2
1/2 x 2-1/2 in. C-Z mach
14шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
14шт.
120384
WASHER,1/2"
LOCK, 1/2"
14шт.
9
27585BA
BOLT,Wedge, 1/2" - 13 x 4 1/2", Long
wedge, 19 for units F, G, and H, 8 for unit K, 12 for unit L
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
19шт.
10
522557R2
CLAMP
standard
1шт.
10
519475R2
CLAMP
standard, used with units K and L only
1шт.
10
519476R2
CLAMP, standard, used with units K and L only
1шт.
11
483258R1
TOOL BAR, outer row, bent, not used with units K and L
1шт.
12
30791BA
EXTENSION
tool bar, 1-3/8 in. sq x 14-1/8 in. long, 10 for units F, G, H, and L, 6 for unit K
1шт.
13
486899R1
BAR, right hand, not used with units K and L
1шт.
14
487060R1
EXTENSION, curved tool bar, not used with units K and L
1шт.
Выбрано товаров: 27
