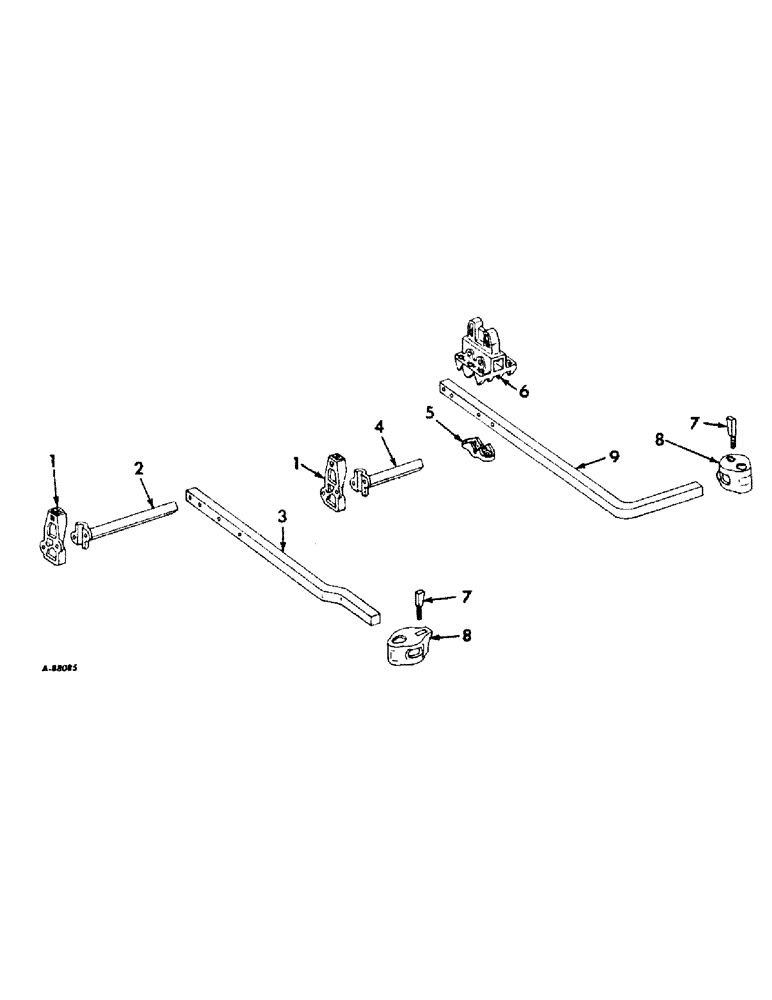

Запчасти Case IH 53 (F-11) - TOOLING EQUIPMENT, GANGS AND CLAMPS

1

483255R1

CAP

extension, 8 for unit A, 12 for unit B, 16 for unit C

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 in. mach, 8 for unit A, 12 for unit B, 16 for unit C

1шт.

13380R1

BOLT, 5/8 x 2-1/2 in. sq-hd mach, 16 for unit A, 24 for unit B, 32 for unit C

1шт.

102639

NUT,5/8"-11, G5

16 for unit A, 24 for unit B, 32 for unit C 5/8"-11, G5

1шт.

2

30790BA

EXTENSION

S, tool bar, 1-3/8 in. sq x 8-5/8 in. long, 2 for unit A, B, C

1шт.

3

486391R1

TOOL BAR, inner row, 3 for unit A, 5 for unit B, 7 for unit C

1шт.

4

511992R1

EXTENSION, tool bar, 1-3/8 in. sq x 9-5/8 long, 6 for unit A, 14 for unit C

1шт.

5

28256BA

CLAMP, tool bar attaching, 8 for unit A 12 for unit B, 16 for unit C

1шт.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

BOLT, 5/8 x 3-1/2 in. mach, 16 for unit A, 24 for unit B, 32 for unit C

1шт.

102639

NUT,5/8"-11, G5

16 for unit A, 24 for unit B, 32 for unit C 5/8"-11, G5

1шт.

6

483254R1

CLAMP, tool bar attaching, 5 for unit A, 7 for unit B, 9 for unit C

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach, 10 for unit A, 14 for unit B, 18 for unit C

1шт.

102637

NUT,1/2"-13, G5

10 for unit A, 14 for unit B, 18 for unit C 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 10 for unit A, 14 for unit B, 18 for unit C 1/2"

1шт.

7

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 5 for unit A, 7 for unit B, 9 for unit C

1шт.

102637

NUT,1/2"-13, G5

5 for unit A, 7 for unit B, 8 for unit C 1/2"-13, G5

1шт.

8

522557R2

CLAMP

standard, 5 for unit A, 7 for unit B, 9 for unit C

1шт.

9

486392R1

TOOL BAR, outer row, 2 for units A, B, C

1шт.
