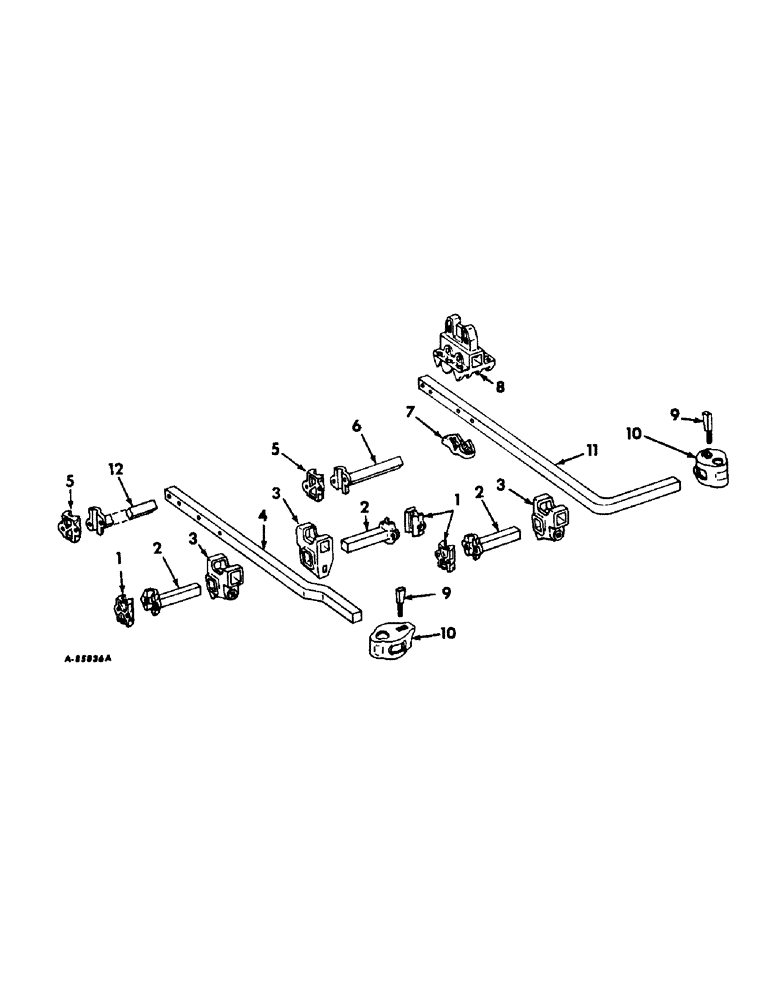

Запчасти Case IH 53 (F-10) - TOOLING EQUIPMENT, GANG AND CLAMPS

1

1779BB

CLAMP

CAP, tool bar extension, 8 for unit A, 12 for unit B

1шт.

29822B

BOLT

1/2 x 2-3/4 in. sq-hd mach, 16 for unit A, 24 for unit B

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 16 for unit A; 24 for unit B 1/2"-13, G5

1шт.

2

28236BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 7-3/4 in. long, 8 for unit A, 12 for unit B

1шт.

3

522556R1

CLAMP

extension tool bar, 8 for unit A, 12 for unit B

1шт.

4

483257R1

TOOL BAR, inner row, 3 for unit A, 5 for unit B

1шт.

5

510918R1

CLAMP

CAP, tool extension bar, 8 for unit A, 12 for unit B

1шт.

13380R1

BOLT, 5/8 x 2-1/2 in. sq-hd mach, 16 for unit A, 24 for unit B

1шт.

102639

NUT,5/8"-11, G5

16 for unit A, 24 for unit B 5/8"-11, G5

1шт.

6

30790BA

EXTENSION

tool bar outer row, 1-3/8 in. sq, 8-5/8 in. long, 2 for units A and B

1шт.

7

28256BA

CLAMP, cap, 8 for unit A, 12 for unit B

1шт.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

BOLT, 5/8 x 3-1/2 in. mach, 16 for unit A, 24 for unit B

1шт.

102639

NUT,5/8"-11, G5

16 for unit A, 24 for unit B 5/8"-11, G5

1шт.

8

483254R1

CLAMP, tool bar attaching, 5 for unit A, 7 for unit B

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach, 10 for unit A, 14 for unit B

1шт.

102637

NUT,1/2"-13, G5

10 for unit A, 14 for unit B 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , 10 for unit A; 14 for unit B 1/2"

1шт.

9

27585A

BOLT, wedge, 13 for unit A, 19 for unit B

1шт.

102637

NUT,1/2"-13, G5

13 for unit A, 19 for unit B 1/2"-13, G5

1шт.

10

522557R2

CLAMP

standard, 5 for unit A, 7 for unit B

1шт.

11

483258R1

TOOL BAR, outer row, 2 for units A and B

1шт.

12

30791BA

EXTENSION

tool bar, 1-3/8 in. sq, 14-18 in. long, 6 for unit A, 10 for unit B

1шт.
