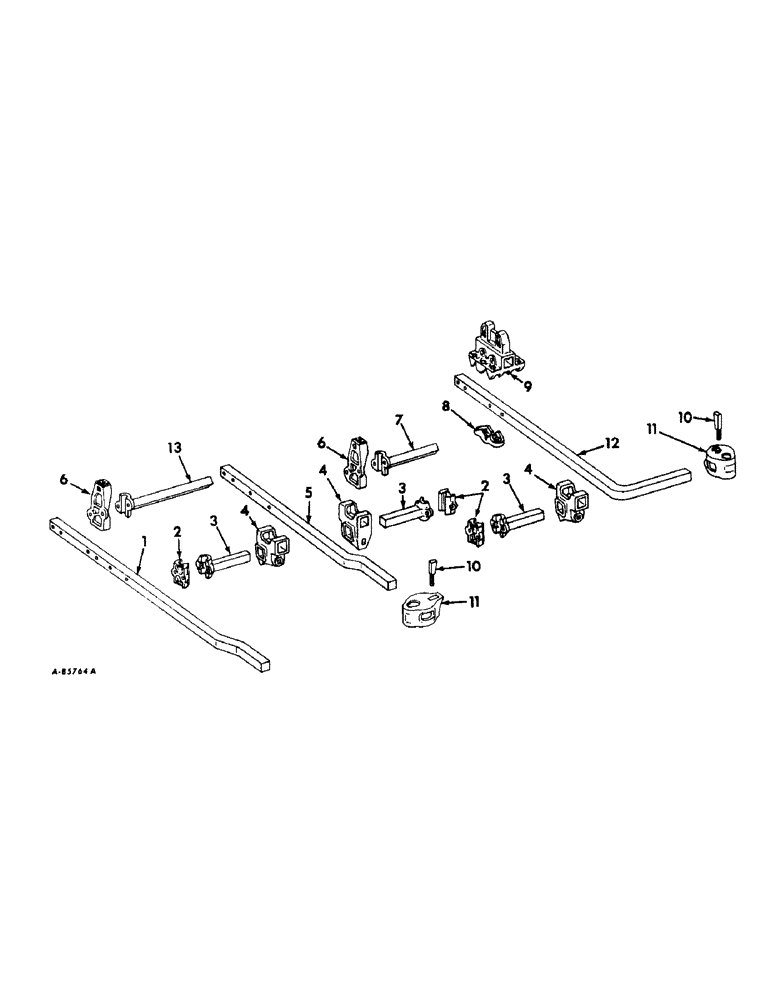

Запчасти Case IH 53 (F-09) - TOOLING EQUIPMENT

1

483256R1

TOOL BAR, center row

1шт.

2

1779BB

CLAMP

CAP, tool bar extension

1шт.

29822B

BOLT

1/2 x 2-3/4 in. sq-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

3

28236BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq. 7-3/4 in. long

1шт.

4

522556R1

CLAMP

extension tool bar

1шт.

5

483257R1

TOOL BAR, inner row

1шт.

6

483255R1

CAP

extension

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 in. mach

1шт.

13380R1

BOLT, 5/8 x 2-1/2 in. sq-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

7

30791BA

EXTENSION

tool bar outer row, 1-3/8 in. sq, 8-5/8 in. long

1шт.

8

28256BA

CLAMP, cap

1шт.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

BOLT, 5/8 x 3-1/2 in. mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

9

483254R1

CLAMP, tool bar attaching

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

11

522557R2

CLAMP

standard

1шт.

12

483258R1

TOOL BAR, outer row

1шт.

30790BA

EXTENSION

tool bar outer row, 1-3/8 in. sq, 8-5/8 in. long

1шт.
