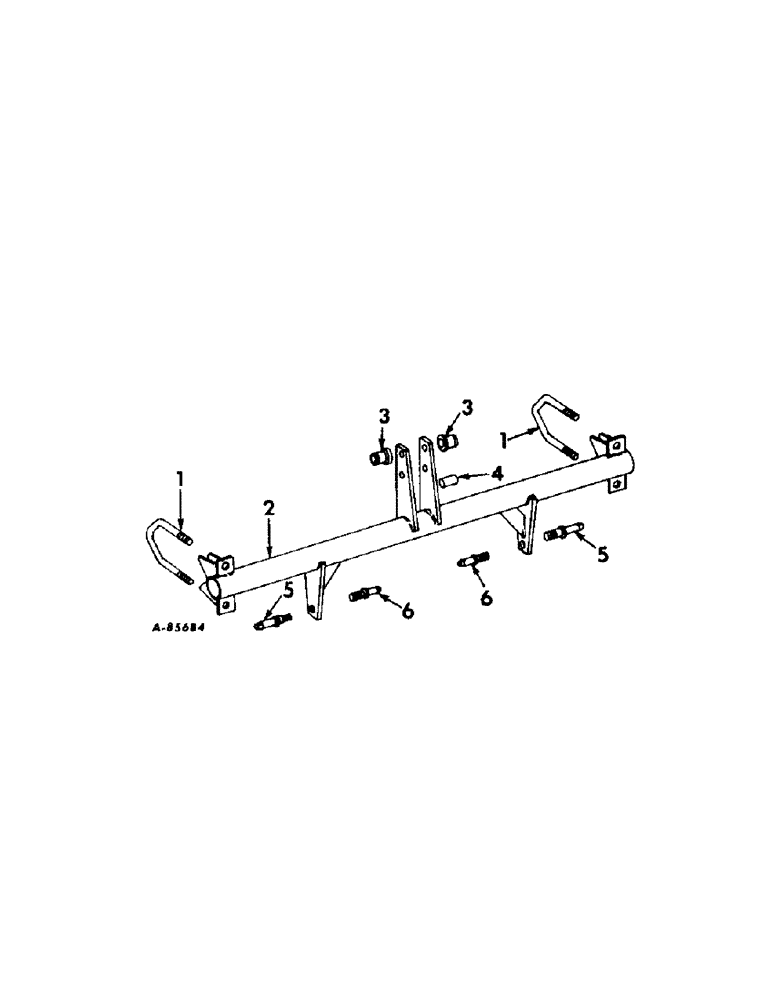

Запчасти Case IH 53 (F-06) - THREE-POINT HITCH CATEGORY I AND II

1

525626R1

BOLT,U, 7/8" - 9 x 8 3/8"

U-BOLT, attaching

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

2

483288R91

BRACKET

ASSY, hitch

1шт.

3

481074R1

BUSHING, hitch bracket upper arm, for category 1 hitch

2шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, , upper arm bushing retaining #100, Ext

2шт.

4

462425R1

SPACER

mast

1шт.

17724R1

BOLT, 3/4 x 4 in. mach

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

472790R2

STUD

lower, for category II hitch

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8 in. C-Z pltd

2шт.

492-11112

LOCK WASHER,1 1/8"

WASHER, 1-1/8 in. C-Z pltd

2шт.

6

470511R1

STUD

lower, for category 1 hitch

2шт.

426767

NUT,7/8"-14, G5

7/8 in. C-Z pltd

2шт.

103047

PIN

WASHER, 7/8 in. C-Z pltd lock

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 in. x 11 ga

2шт.
