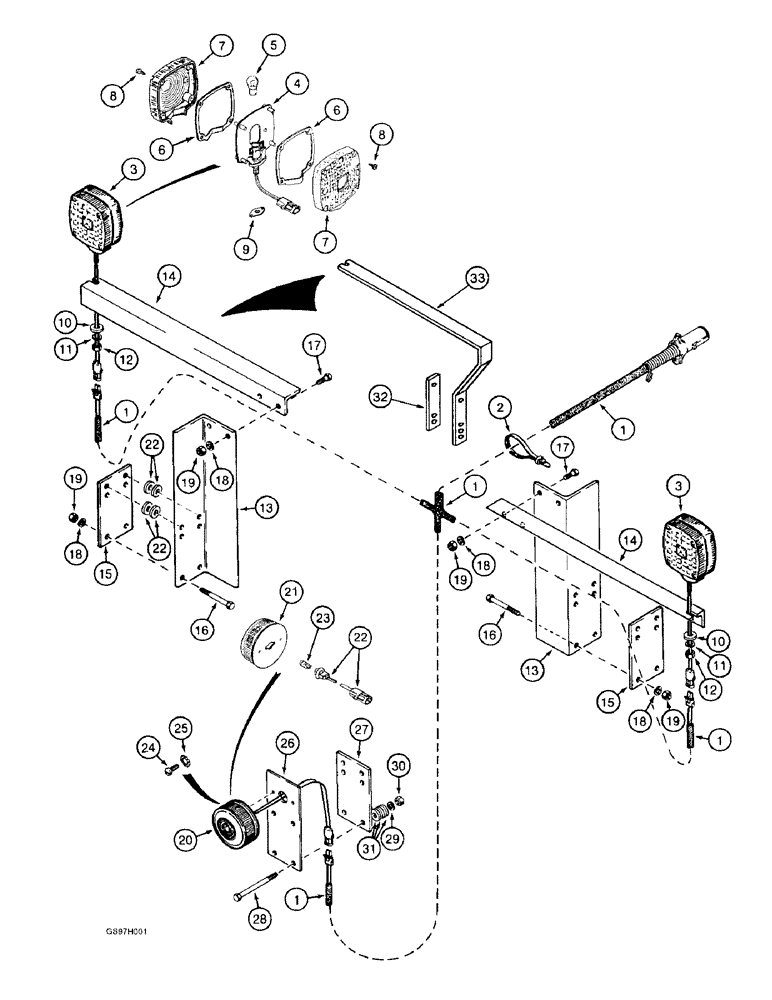

Запчасти Case IH 4800 (4-02) - WIRING HARNESS AND LAMP MOUNTING (04) - ELECTRICAL SYSTEMS

1

1969327C1

HARNESS

- wiring, lamps

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, wiring harness (Replaces strap 813579C1)

14шт.

192052A1

REPAIR KIT

KIT - warning lamp, two wire, includes instructions

2шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, order kit 192052A1

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - turn signal lamp, order kit 192052A1

1шт.

5

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

6

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens

1шт.

7

NSS

NOT SOLD SEPARAT

LENS - lamp, amber, order kit A44202

2шт.

8

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round head Phillips, No. 8 NC x 5/8 inch

8шт.

9

F63435

GASKET

- lamp mounting

1шт.

9a

377630C1

CONNECTOR, ELEC

CONNECTOR - warning lamp, not shown

2шт.

10

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

13

1969260C2

ANGLE

BRACKET - turn signal lamp mounting, if used

2шт.

14

1969261C1

ANGLE

BRACKET - turn signal lamp mounting, if used

2шт.

15

1969263C1

LARGE PLATE

PLATE - mounting, if used

2шт.

16

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, if used

8шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

20

91986C91

LIGHT

LAMP ASSEMBLY - tail

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - tail lamp, order lamp assembly 91986C91

1шт.

22

91934C1

SOCKET

ASSEMBLY - bulb

1шт.

23

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

24

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

26

1969262C2

LARGE PLATE

PLATE - tail lamp mounting

1шт.

27

1969263C1

LARGE PLATE

PLATE - mounting

1шт.

28

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

4шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

31

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

32

1995522C2

BAR

- clamping

2шт.

33

223948A1

SUPPORT

BRACKET - safety lamp support

2шт.

25

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
