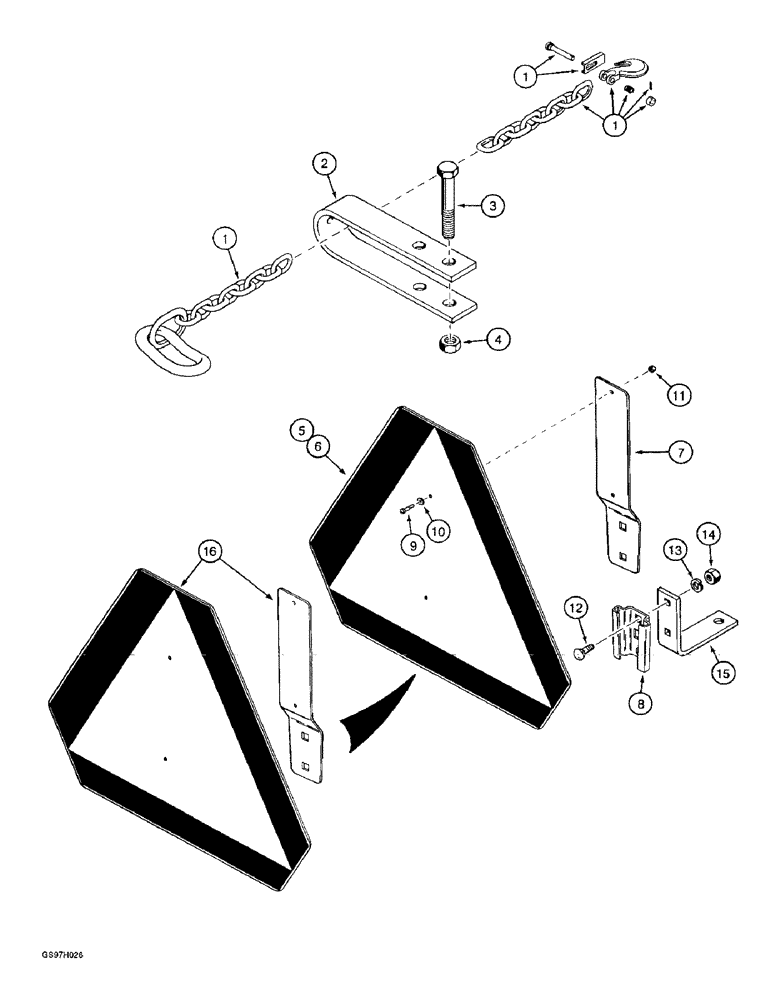

Запчасти Case IH 4800 (9-36) - HIGHWAY CHAIN AND SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

100682C3

CHAIN (AG)

CHAIN - hitch, 5/16 link x 59-1/4 inch, 10,000 lb, includes hardware, no longer used, order chain 700705598, item 1A

1шт.

1a

700705598

CHAIN (CE)

CHAIN - hitch, not shown

1шт.

2

1279163C1

CLEVIS COUPLING

CLEVIS - highway chain

1шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

4

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

407220R1

PRODUCT GRAPHIC

EMBLEM ASSEMBLY - slow moving vehicle, steel, no longer available, order emblem A59450, item 16 and bracket A59457, item 8

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem, order emblem assembly

1шт.

6

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - SMV emblem

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - SMV emblem mounting, long, order emblem assembly

1шт.

8

A59457

BRACKET

- adapter

1шт.

9

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

10

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 13/64 x 1/2 x 3/64 inch

2шт.

11

225-14110

NUT,#10-24

2шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

811324C1

SUPPORT

BRACKET - L-shaped, SMV emblem mounting

1шт.

16

A59450

WARNING SIGN

EMBLEM - slow moving vehicle, includes brackets and hardware

1шт.
