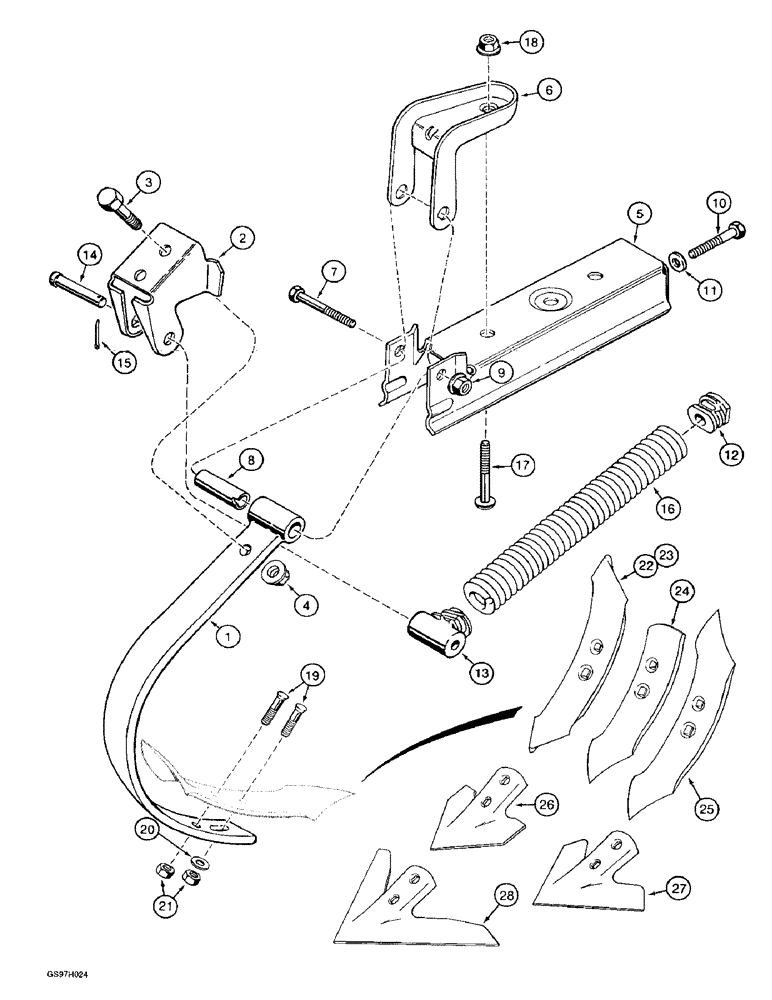

Запчасти Case IH 4800 (9-32) - VIBRA SHANKS AND GROUND WORKING TOOLS (09) - CHASSIS/ATTACHMENTS

1

813293C1

SHANK

- ground working tool

1шт.

2

591542R1

BRACKET

CLAMP - shank

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, if used

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

- hex, 1/2 NC x 1-3/8 inch, If used

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with bolt 413-824 1/2"

1шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

If used Flg, USR, 1/2"-13

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, If used 1/2"-13, G5

1шт.

5

97572C3

BRACKET

- shank

1шт.

6

97573C2

BRACKET

CLAMP - shank

1шт.

7

326-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

(Replaces bolt 811352C1) Hex, 1/2"-13 x 3 3/4", G8

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 15/32 x 59/64 x 7/64 inch, hardened

1шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex serrated flange, 1/2 inch NC, grade 8

1шт.

8

811354C2

BUSHING

- shank

1шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

12

591547R1

PLUG

- spring retaining

1шт.

13

591544R1

PLUG

- spring

1шт.

14

591545R1

PIN,13.08mm OD x 61.98mm L

- special

1шт.

15

432-1216

COTTER PIN,3/16" x 1"

1шт.

16

591546R2

SPRING

- shank return

1шт.

17

811340C3

BOLT,1/2" - 13 x 5 1/2"

- shank mounting

1шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

19

418-3722

PLOW BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT - plow, 7/16 NC x 1-3/8 inch, grade 2 (Replaces bolt 21148R1)

1шт.

20

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1-1/4 x 1/16 inch, one washer required on lower bolt for each ground working tool

1шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Two nuts required for each ground working tool

1шт.

22

596623R1

POINT

- 44 mm (1-3/4 inch) wide, reversible chisel, if used

1шт.

23

811799C3

POINT

- 51 mm (2 inch) wide, reversible chisel, if used

1шт.

24

594227R1

TOOTH

POINT - 51 mm (2 inch) wide, pencil, if used

1шт.

25

811889C1

POINT

- 51 mm (2 inch) wide, reversible pencil, if used

1шт.

26

1547095C2

SHOVEL

4.5

1шт.

27

1547097C2

SWEEP

7.5

1шт.

28

1547098C2

SWEEP

9.0

1шт.

29

1547099C2

SWEEP

10.5

1шт.
