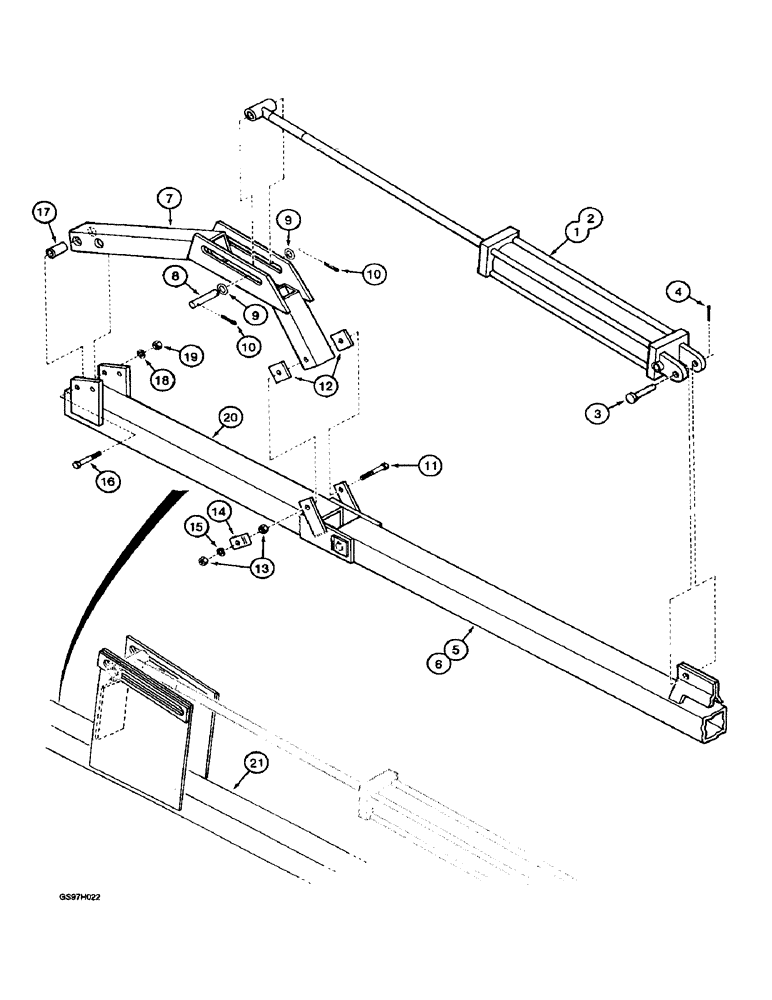

Запчасти Case IH 4800 (9-28) - WING LIFT HINGE (09) - CHASSIS/ATTACHMENTS

1

1285753C94

CYLINDER

ASSEMBLY - primary wing lift, 89 (3-1/2) ID x 866 mm (34 inch) stroke, parts list page 8-15

2шт.

2

810665C91

CYLINDER

ASSEMBLY - primary wing lift, 89 (3-1/2) ID x 866 mm (34 inch) stroke, parts list page 8-17

2шт.

3

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis, 1 x 3-1/2 inch (Replaces pin 28544R1)

2шт.

4

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

5

1336413C92

FUNNEL

FRAME ASSEMBLY - main, rear, parts list page 9-5, use items 7 through 19 with this assembly

1шт.

6

1995701C1

FRAME

ASSEMBLY - main, rear, parts list page 9-5, do not use item 7 and items 11 through 19 with this assembly

1шт.

7

854522C2

SUPPORT

- wing lift

2шт.

8

854527C1

PIN

- cylinder rod mounting

2шт.

9

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

4шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

4шт.

11

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

2шт.

12

854645C1

BAR

SPACER - cylinder rod, 16 mm (5/8 inch) thick

4шт.

13

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

14

1256951C1

CLAMP

- hose

2шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

16

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

4шт.

17

31097R1

SPACER

- wing lift support

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

REF

INSTRUCTION

FRAME ASSEMBLY - wing, with separate cylinder attaching support, item 7 above, see page 9-11

1шт.

21

REF

INSTRUCTION

FRAME ASSEMBLY - wing, with integral cylinder attaching bracket, see page 9-13

1шт.
