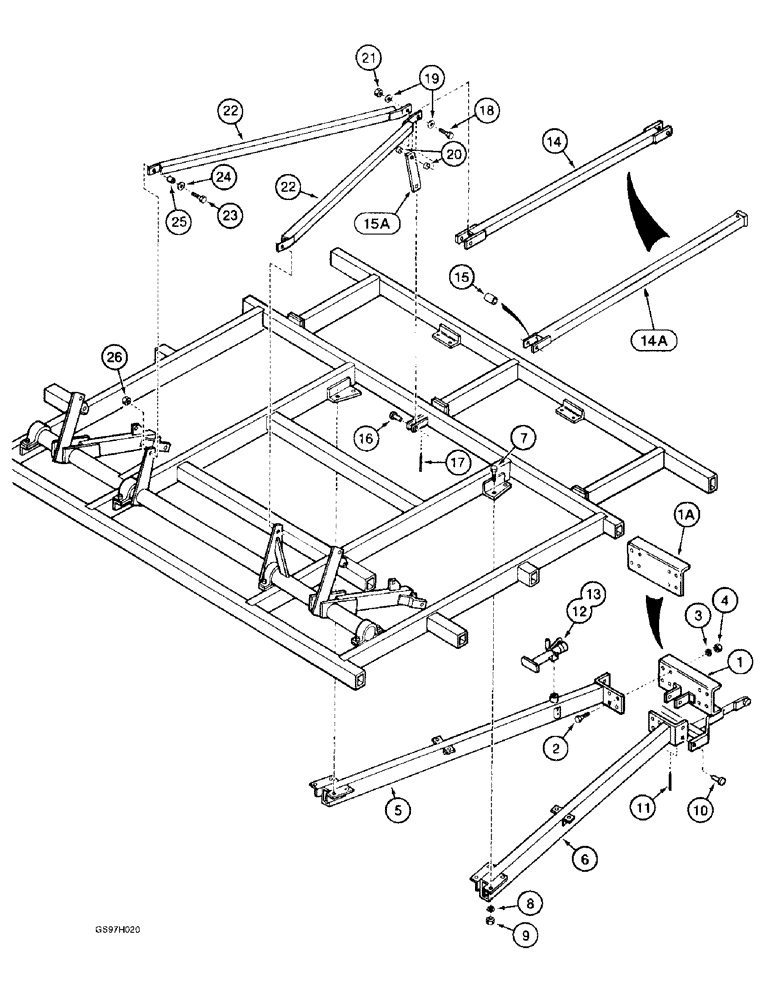

Запчасти Case IH 4800 (9-24) - LEVEL LIFT TRACTOR HITCH, BRACES AND BEAMS, UNITS WITH FRONT CONNECTING HITCH TUBE (09) - CHASSIS/ATTACHMENTS

1

1284134C2

ANGLE

BRACKET - hitch connecting, if used

1шт.

1a

1284135C2

ANGLE

BRACKET - hitch connecting, if used

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

1284354C1

TUBE,2072 mm Length

BEAM - hitch, outer, left-hand

1шт.

6

1284355C1

TUBE

BEAM - hitch, outer, right-hand

1шт.

7

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

12шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

9

425-1010

NUT,5/8"-11, G5

12шт.

10

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

PIN - clevis, 1-1/4 x 3-3/4 inch, hardened

2шт.

11

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

12

135061C91

JACK

- side crank, Atwood manufactured, no longer used, order jack 119354C1 below

1шт.

13

119354C1

JACK

- side crank, Hammerblow manufactured

1шт.

14

1284492C1

TUBE ASSY.

TUBE - front connecting, if used

1шт.

14a

1985908C1

TUBE

- front connecting, if used

1шт.

15

1985917C1

SPACER

- tube, 1 x 3/4 inch, used with tube 1985908C1

1шт.

15a

1284496C1

BAR

- intermediate pivot, if used

1шт.

16

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch, intermediate pivot bar

1шт.

17

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

18

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

1шт.

19

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

20

571823R1

SPACER,1 1/4" Tube x 1"

- front connecting tube

2шт.

21

231-41116

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

1шт.

22

1284489C1

TUBE,1830 mm Length

- rear connecting, if used

2шт.

23

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch, if used

2шт.

23

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch, if used

2шт.

24

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 11/64 inch

2шт.

25

1333812C1

BUSHING,19.3mm ID x 25.4mm OD x 15mm L

- rear connecting tube, if used

2шт.

26

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.
