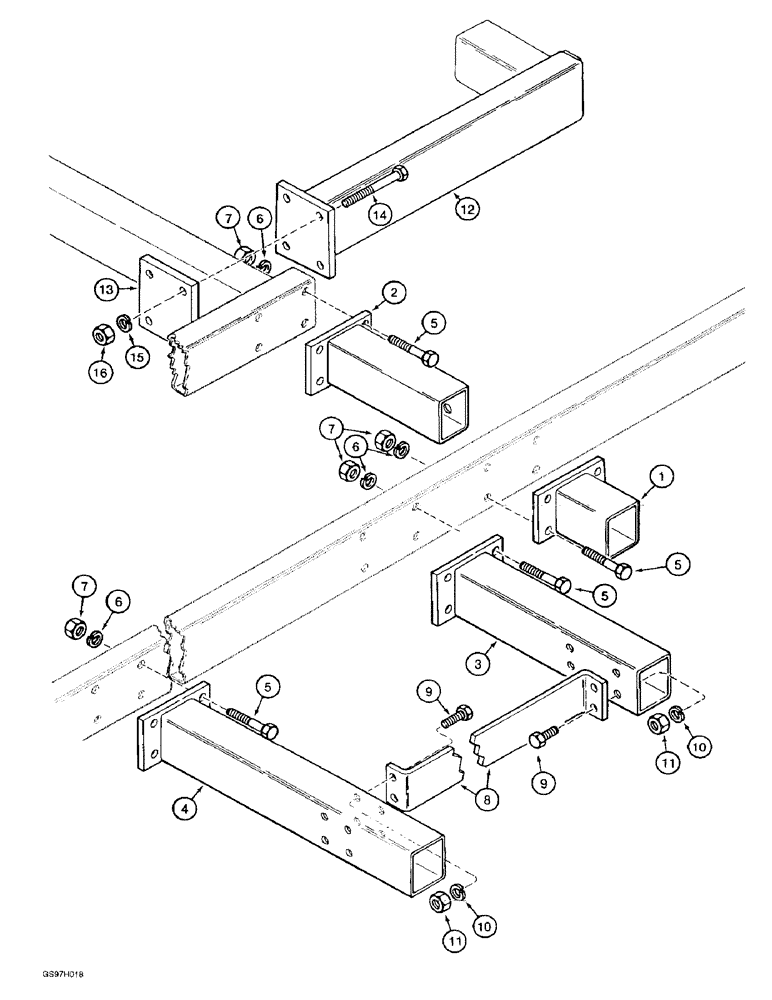

Запчасти Case IH 4800 (9-20) - WING FRAME EXTENSIONS (09) - CHASSIS/ATTACHMENTS

1

1333797C1

TUBE,127 mm Length

EXTENSION - frame, 127 mm (5 inch) long, if used

2шт.

2

811367C2

TUBE ASSY.,279.4 mm Length

EXTENSION - frame, 279 mm (11 inch) long, if used

2шт.

3

811668C2

TUBE ASSY.,457.2 mm Length

EXTENSION - frame, 439 mm (18 inch) long, if used

2шт.

4

811669C3

TUBE ASSY.,635 mm Length

EXTENSION - frame, 639 mm (25 inch) long, if used

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

32шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

32шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

32шт.

8

810621C1

BRACE

- frame extension, 724 mm (28-1/2 inch) long, straight, if used

2шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

12

854625C1

EXTENSION

- frame, L-shaped, if used

2шт.

13

811356C1

BAR

BRACKET - extension mounting, if used

2шт.

14

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.
