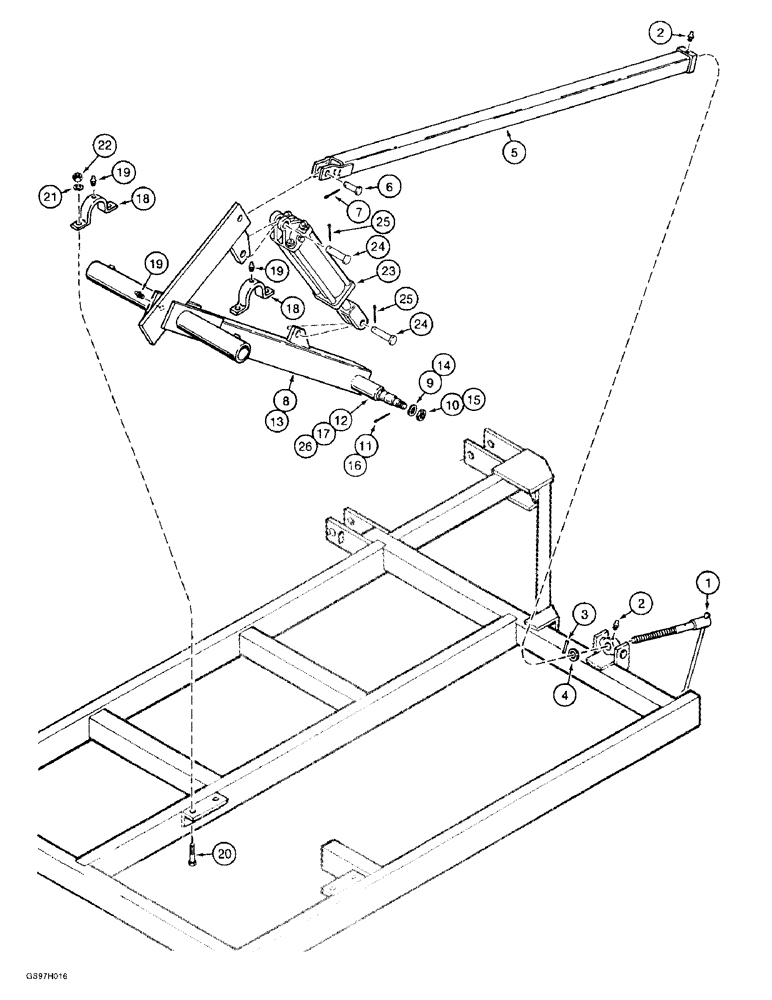

Запчасти Case IH 4800 (9-16) - WING FRAME AXLES AND DEPTH CONTROL WITH SINGLE WHEEL (09) - CHASSIS/ATTACHMENTS

1

1284398C3

STUD

ROD - truss, with crank, depth control

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

3

38-32432

PIN,3/8" x 2", Coiled

truss rod to trunnion (replaces pin 616387R1) 3/8" x 2", Coiled

2шт.

4

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

2шт.

5

1284466C1

TUBE,1440 mm Length

LINK - rockshaft

2шт.

6

439-11639

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch, grade 2, truss rod tube to rockshaft

2шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

1336419C1

ROCKSHAFT

ASSEMBLY - wing frame, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

ROCKSHAFT - right-hand, wing frame depth control, order rockshaft assembly

1шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

11

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

12

NSS

NOT SOLD SEPARAT

SPINDLE - rockshaft, order rockshaft assembly

1шт.

1336418C91

ROCKSHAFT

ASSEMBLY - wing frame, left-hand, not shown

1шт.

13

NSS

NOT SOLD SEPARAT

ROCKSHAFT - left-hand, wing frame depth control, order rockshaft assembly

1шт.

14

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

15

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

16

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

17

NSS

NOT SOLD SEPARAT

SPINDLE - rockshaft, order rockshaft assembly

1шт.

18

811038C2

CLAMP

- rockshaft

4шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , If used 1/4"-28 x .56" lg, Self-Tap

6шт.

19

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tapping, 1/8 PT x 5/8 inch, if used

6шт.

20

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

22

425-1010

NUT,5/8"-11, G5

8шт.

23

1282322C93

CYLINDER

ASSEMBLY - wing frame depth control, 83 (3-1/4) ID x 203 mm (8 inch) stroke, parts list page 8-13

2шт.

87423770R

REMAN-HYD CYLINDER

4800 CASE IH VIBRA SHANK FIELD CULTIVATOR (9/87-), Reman for New P/N 1282322C93

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

24

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis, 1 x 3-1/2 inch, depth control cylinder (Replaces pin 28544R1)

4шт.

25

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

26

96131C91

SPINDLE

ASSEMBLY - repair, includes hardware items 9, 10, and 11 or items 14, 15, and 16

1шт.
