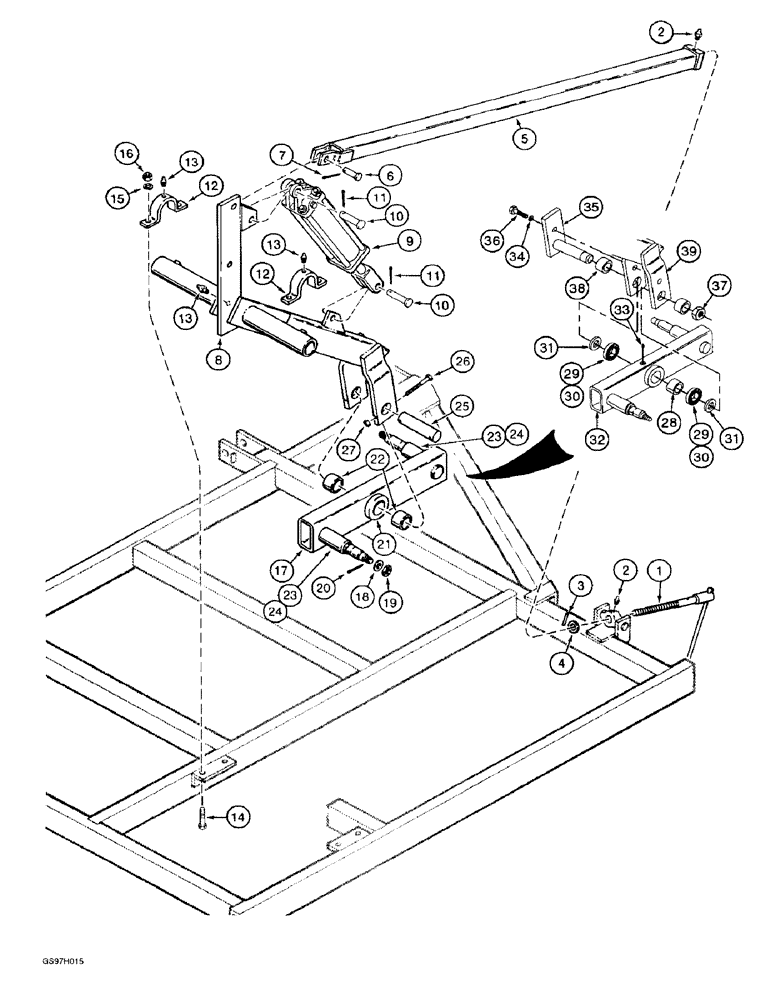

Запчасти Case IH 4800 (9-14) - WING FRAME AXLES AND DEPTH CONTROL WITH DUAL WHEELS (09) - CHASSIS/ATTACHMENTS

1

1284398C3

STUD

ROD - truss, with crank, depth control

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

3

38-32432

PIN,3/8" x 2", Coiled

truss rod to trunnion (replaces pin 616387R1) 3/8" x 2", Coiled

2шт.

4

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

2шт.

5

1284466C1

TUBE,1440 mm Length

LINK - rockshaft

2шт.

6

439-11639

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch, grade 2, truss rod tube to rockshaft

2шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

8

1284449C2

SHAFT

ROCKSHAFT - wing frame, used with axle assembly 1284065C93

2шт.

8

135738A1

ROCKSHAFT

- wing frame, used with kit 187037A1

2шт.

9

1282322C93

CYLINDER

ASSEMBLY - wing frame depth control, 83 (3-1/4) ID x 203 mm (8 inch) stroke, parts list page 8-13

2шт.

87423770R

REMAN-HYD CYLINDER

4800 CASE IH VIBRA SHANK FIELD CULTIVATOR (9/87-), Reman for New P/N 1282322C93

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

10

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis, 1 x 3-1/2 inch, depth control cylinder (Replaces pin 28544R1)

4шт.

11

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

12

811038C2

CLAMP

- rockshaft

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , If used 1/4"-28 x .56" lg, Self-Tap

6шт.

13

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tapping, 1/8 PT x 5/8 inch, if used

6шт.

14

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

425-1010

NUT,5/8"-11, G5

8шт.

1284065C93

TUBE NUT

AXLE ASSEMBLY - wing frame, no longer available, order kit 187037A1

2шт.

17

NSS

NOT SOLD SEPARAT

AXLE - wing frame, order axle assembly

1шт.

18

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

2шт.

19

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

20

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

21

1337962C2

SUPPORT

ASSEMBLY - axle bushing, weld on

4шт.

22

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

- axle, use B17069 Loctite to install bushing, see below

1шт.

NOTE: See page 9-19 for wing frame tires and wheels.

1шт.

23

NSS

NOT SOLD SEPARAT

SPINDLE - axle, order axle assembly

2шт.

24

96131C91

SPINDLE

ASSEMBLY - repair, includes hardware items 18, 19 and 20 listed above

1шт.

25

1279363C2

PIN,50.8mm OD x 165mm L

- pivot, rockshaft to axle, used with axle assembly 1284065C93

2шт.

26

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8, used with pin 1279363C2

4шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, , Used with pin 1279363C2 3/8"-16, GC

4шт.

187037A1

PACKAGE,SERVICE

KIT - axle replacement, light duty, main frame

1шт.

28

107921A2

TUBE

- sleeve

1шт.

29

8050528

ROLLER BEARING

BEARING - tapered roller, includes seal

2шт.

30

453012R1

BEARING CUP

BEARING - cup

2шт.

31

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

SPACER

2шт.

32

107918A1

TUBE,434, 162 mm Length

- axle, light duty, also includes bushing 89230C1, item 22

2шт.

33

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

34

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

35

103069A2

PIN

-weldment

1шт.

36

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

- hex, 3/4 NC x 1 inch

1шт.

37

131-1419

NUT,1 1/2"-6, Thin

- hex, thin, 1-1/2 inch NC

1шт.

38

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- weldment pin

2шт.

39

103095A1

BAR

PLATE - axle tube

2шт.

B17069

LOCTITE

- Hi Strength, No. 601, 50 ml (2 ounces), used to install bushing 89230C1, item 22

1шт.

NOTE: See page 9-19 for wing frame tires and wheels.

1шт.
