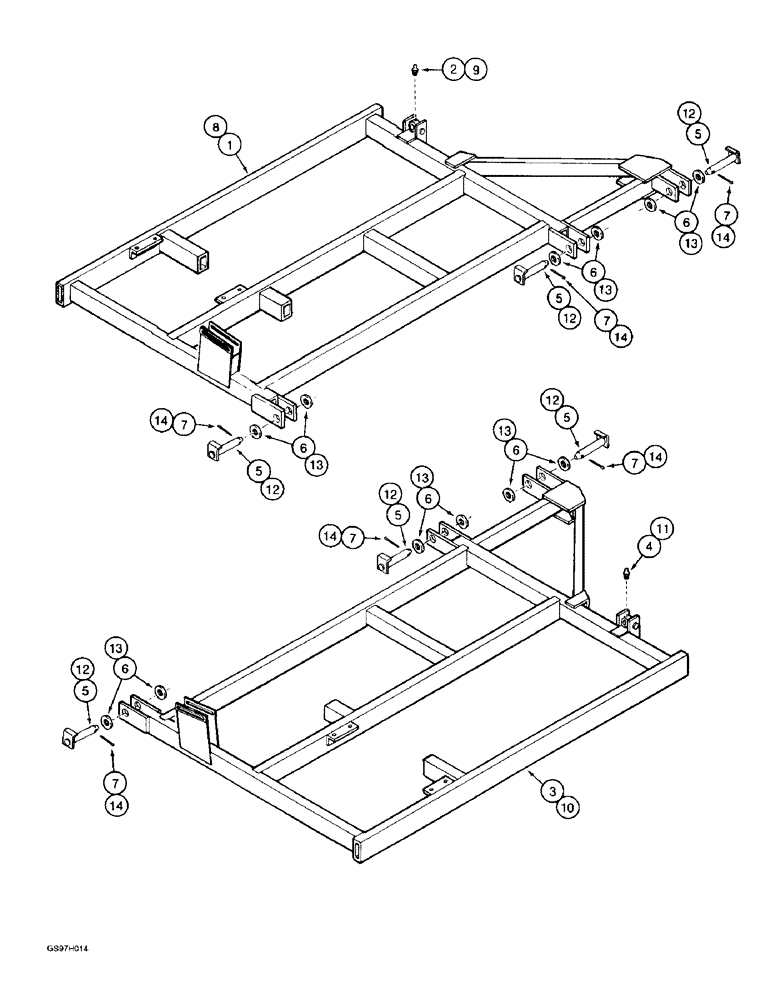

Запчасти Case IH 4800 (9-12) - WING FRAMES, WITH INTEGRAL CYLINDER ATTACHING BRACKET, 23 TO 26 FOOT WIDE VIBRA SHANK (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1284437C3
FRAME
- wing, left-hand
1шт.
2
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
3
1284438C3
FUNNEL
FRAME - wing, right-hand
1шт.
4
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
5
854587C2
PIN
- hinge, wing frame to main frame
6шт.
6
495-81069
WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk
- flat, 1-1/32 x 1-1/2 x 1/16 inch
12шт.
7
432-2032
COTTER PIN,5/16" x 2"
Pin, Split (Cotter), (Replaces pin 22442R1) 5/16" x 2"
6шт.
8
1284439C2
FRAME
- wing, left-hand, shown on page 9-11
1шт.
9
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
10
1284440C2
FRAME
- wing, right-hand, shown on page 9-11
1шт.
11
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
12
854587C2
PIN
- hinge, wing frame to main frame
6шт.
13
495-81069
WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk
- flat, 1-1/32 x 1-1/2 x 1/16 inch
12шт.
14
432-2032
COTTER PIN,5/16" x 2"
Pin, Split (Cotter), (Replaces pin 22442R1) 5/16" x 2"
6шт.
Выбрано товаров: 14
