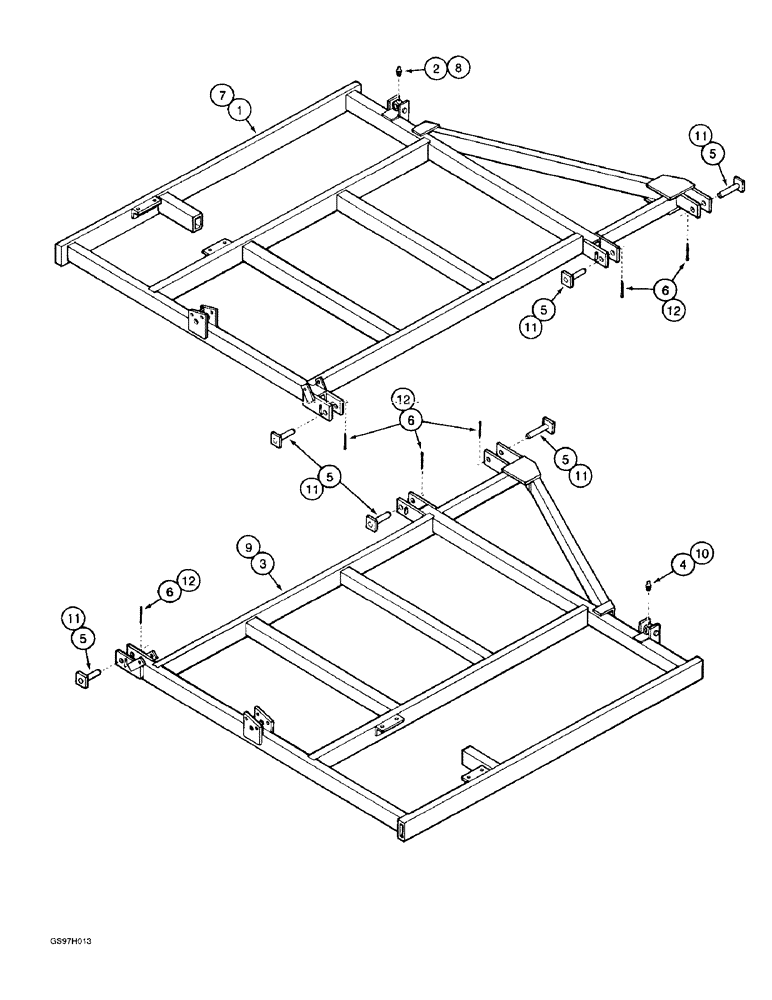

Запчасти Case IH 4800 (9-10) - WING FRAMES, SEPARATE CYLINDER ATTACHING SUPPORT, 23 TO 26 FOOT WIDE VIBRA SHANKS (09) - CHASSIS/ATTACHMENTS

1

1284437C1

FRAME ASSY

FRAME - wing, left-hand, not shown, no longer available, order frame 1284437C3 on page 9-13

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

3

1284438C1

FUNNEL

FRAME - wing, right-hand, not shown, no longer available, order frame 1284438C3 on page 9-13

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

854587C2

PIN

- hinge, wing frame to main frame

6шт.

6

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), (Replaces pin 22442R1) 5/16" x 2"

6шт.

7

1284439C2

FRAME

- wing, left-hand

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

9

1284440C2

FRAME

- wing, right-hand

1шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

11

854587C2

PIN

- hinge, wing frame to main frame

6шт.

12

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), (Replaces pin 22442R1) 5/16" x 2"

6шт.
