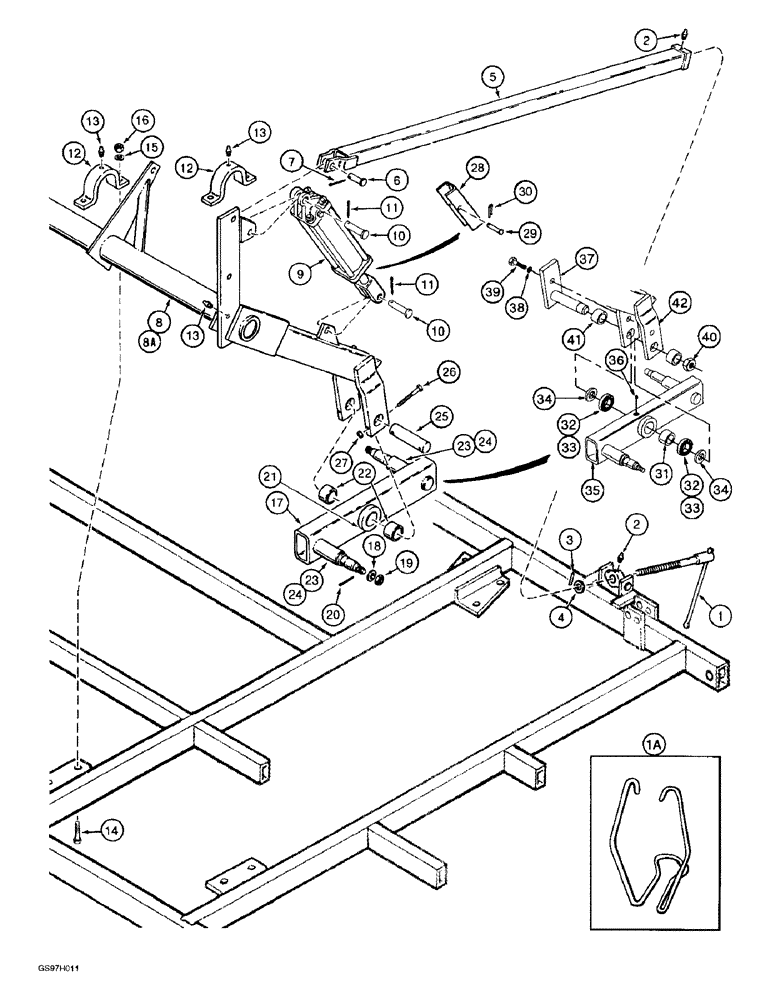

Запчасти Case IH 4800 (9-07A) - MAIN FRAME AXLES AND DEPTH CONTROL (09) - CHASSIS/ATTACHMENTS

187037A1

PACKAGE,SERVICE

KIT - axle replacement, light duty, main frame, this kit will require some welding

1шт.

31

107921A2

TUBE

- sleeve

1шт.

32

8050528

ROLLER BEARING

BEARING - tapered roller, includes seal

2шт.

33

453012R1

BEARING CUP

BEARING - cup

2шт.

34

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

SPACER

2шт.

35

107918A1

TUBE,434, 162 mm Length

- axle, light duty, includes bushing 89230C1, item 22 on page 9-7

1шт.

36

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

37

103069A2

PIN

- weldment

1шт.

38

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

39

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

- hex, 3/4 NC x 1 inch

1шт.

40

131-1419

NUT,1 1/2"-6, Thin

- hex, thin, 1-1/2 inch NC

1шт.

41

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- weldment pin

2шт.

42

103095A1

BAR

PLATE - axle tube

2шт.

B94063

KIT

- rockshaft service

1шт.
