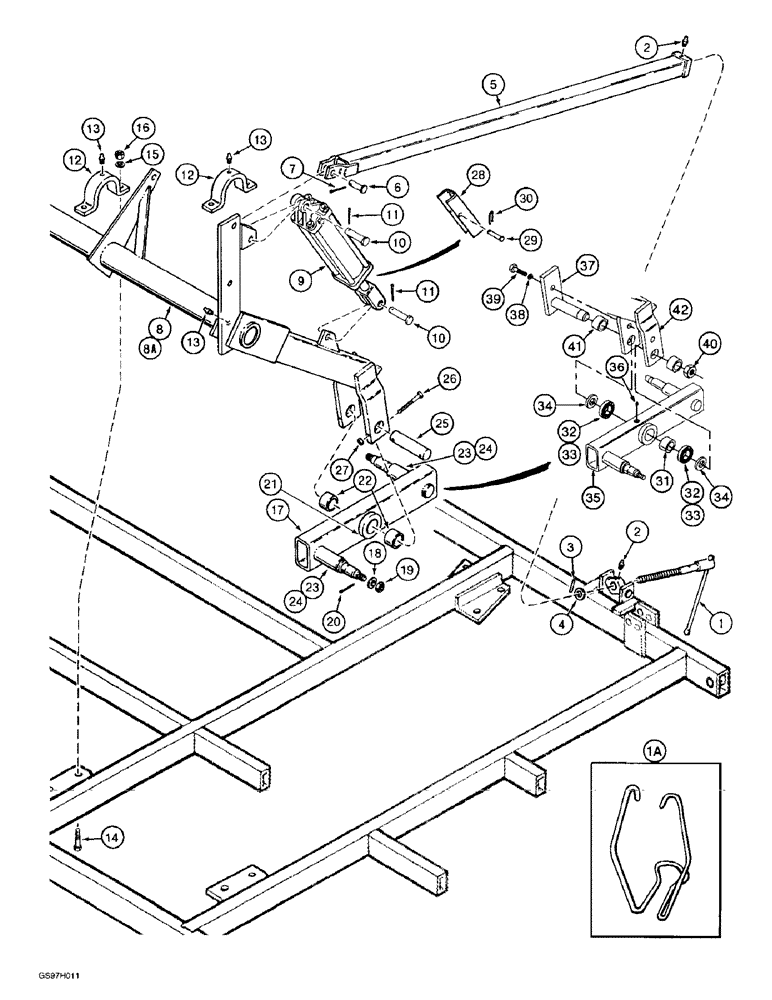

Запчасти Case IH 4800 (9-06) - MAIN FRAME AXLES AND DEPTH CONTROL (09) - CHASSIS/ATTACHMENTS

1

1284398C3

STUD

ROD - truss, with crank, depth control

2шт.

if looking for the weldment that number #1 goes thru the part number is 60134c1. 5-19-98 cw

1шт.

1a

1973010C1

RETAINER

SPRING - crank retainer

4шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

3

38-32432

PIN,3/8" x 2", Coiled

truss rod to trunnion (replaces pin 616387R1) 3/8" x 2", Coiled

2шт.

4

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

2шт.

5

1284401C1

TUBE,1750 mm Length

- truss rod

2шт.

6

439-11639

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch, grade 2, truss rod tube to rockshaft

2шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

8

1284448C2

SHAFT

ROCKSHAFT - with gusset, main frame

1шт.

8a

1995703C1

HYD ROCKSHAFT

ROCKSHAFT - without gusset, main frame, straight-type hitch, not shown, used with axle assembly 1284065C93

1шт.

8a

135733A1

HYD ROCKSHAFT

ROCKSHAFT - main frame, forked-type hitch, not shown, used with kit 187037A1, also order two (2) 103069A2 pins

1шт.

9

1282324C93

CYLINDER

ASSEMBLY - main frame depth control, 89 (3-1/2) ID x 203 mm (8 inch) stroke, parts list page 8-11

2шт.

84255910R

REMAN-HYD CYLINDER

4800 (9/87-), Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

10

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis, 1 x 3-1/2 inch, depth control cylinder (Replaces pin 28544R1)

4шт.

11

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

12

97786C2

STRAP

CLAMP - rockshaft

4шт.

Ref #12...if you need a round head square neck bolt for this clamp, you could use 416-1236 (.75" - 10 X 2.25" grd 8).

1шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , If used 1/4"-28 x .56" lg, Self-Tap

6шт.

13

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tapping, 1/8 PT x 5/8 inch, if used

6шт.

14

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, grade 5

8шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

16

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

1284065C93

TUBE NUT

AXLE ASSEMBLY - main frame, no longer available, order kit 187037A1 on page 9-7B

2шт.

17

NSS

NOT SOLD SEPARAT

AXLE - main frame, order axle assembly 1284065C93

1шт.

18

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

2шт.

19

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

20

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

21

1337962C2

SUPPORT

ASSEMBLY - axle bushing, weld on

4шт.

22

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

- axle, use B17069 Loctite to install bushing, see below

2шт.

NOTE: See page 9-9 for main frame tires and wheels.

1шт.

23

NSS

NOT SOLD SEPARAT

SPINDLE - axle, order axle assembly 1284065C93

2шт.

24

96131C91

SPINDLE

ASSEMBLY - repair, includes hardware items 18, 19 and 20 listed above

1шт.

25

1279363C2

PIN,50.8mm OD x 165mm L

- pivot, rockshaft to axle, used with axle assembly 1284065C93

2шт.

26

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8, used with pin 1279363C2

4шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, , Used with pin 1279363C2 3/8"-16, GC

4шт.

28

1337050C1

CHANNEL

- transport lockout

2шт.

29

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch, grade 2, transport lockout channel

2шт.

30

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - locking

2шт.

B94063

KIT

- rockshaft service

1шт.

B17069

LOCTITE

- Hi Strength, No. 601, 50 ml (2 ounces), used to install bushing 89230C1, item 22

1шт.

NOTE: See page 9-9 for main frame tires and wheels.

1шт.
