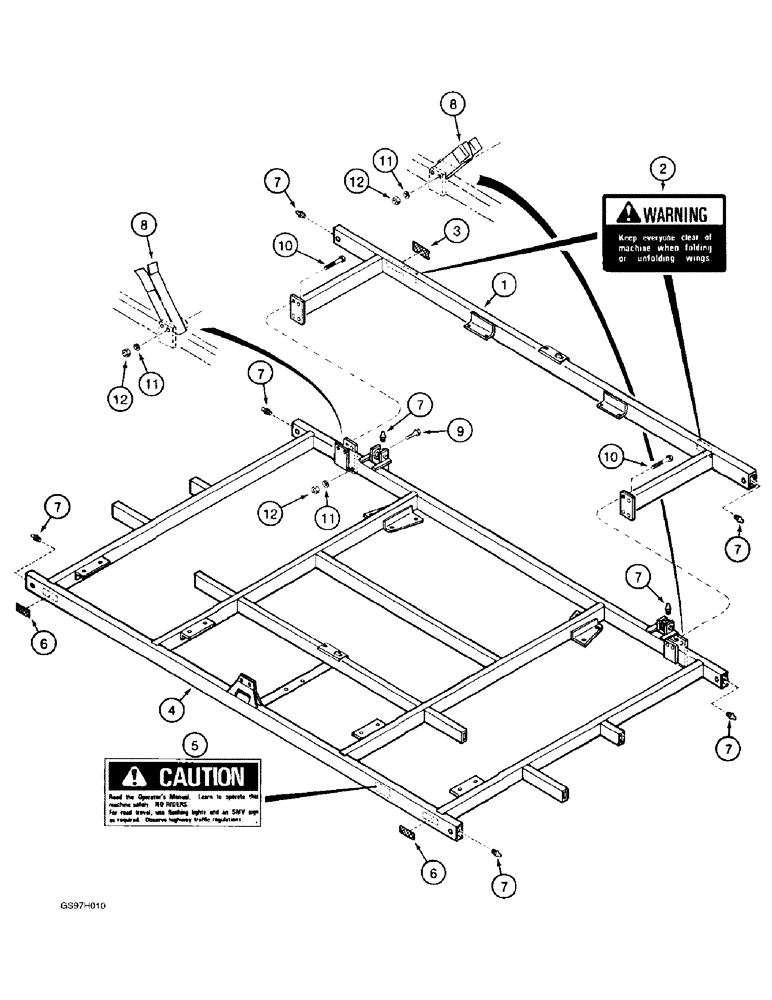

Запчасти Case IH 4800 (9-04) - MAIN FRAME, WITHOUT CENTER SUPPORT ON FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1336414C92

FRAME

ASSEMBLY - main, front

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - main, order frame assembly

1шт.

2

59051C2

PRODUCT GRAPHIC

DECAL - Warning, keep everyone clear of machine when folding or unfolding wings, wing frame

2шт.

3

1284365C2

REFLECTOR

- amber, front, left-hand side

1шт.

1336413C92

FUNNEL

FRAME ASSEMBLY - main, rear, if used

1шт.

1995701C1

FRAME

ASSEMBLY - main, rear, if used

1шт.

4

NSS

NOT SOLD SEPARAT

FRAME - main, order frame assembly

1шт.

5

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual, general instructions

1шт.

6

1284374C1

REFLECTOR,Reflector Red

- red, rear

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

8шт.

8

1344946C1

SUPPORT

- wing frame, front

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Lower holes Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

10

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Upper holes Hex, 5/8"-11 x 5", G5

4шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

425-1010

NUT,5/8"-11, G5

8шт.
