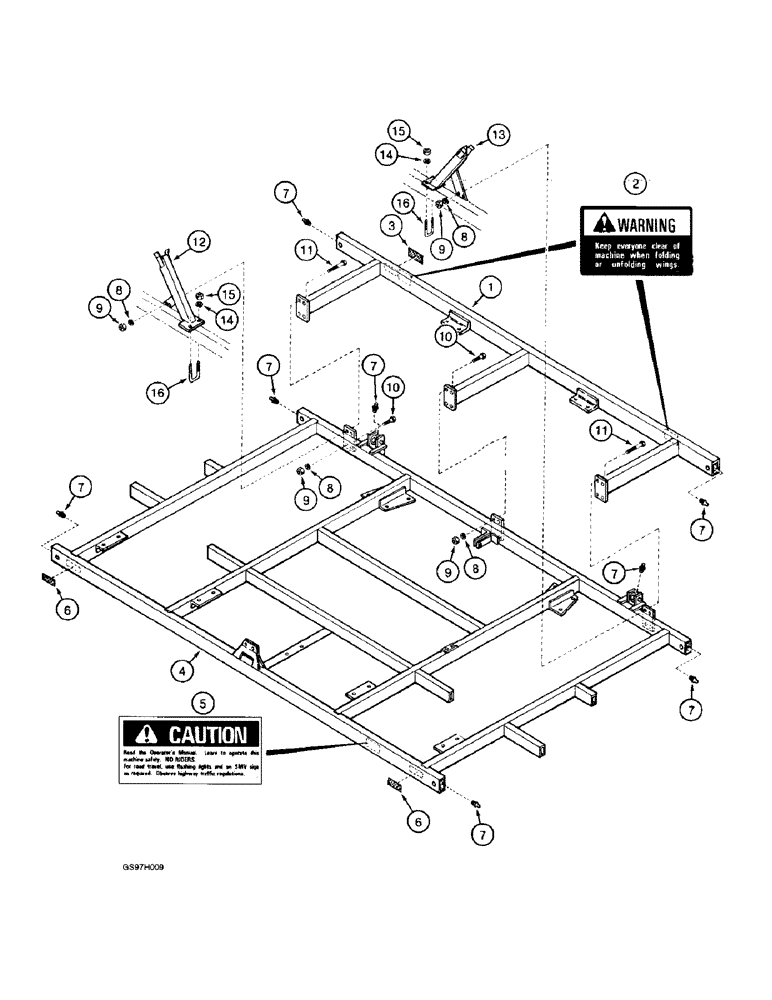

Запчасти Case IH 4800 (9-02) - MAIN FRAME, WITH CENTER SUPPORT ON FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1336414C91

FUNNEL

FRAME ASSEMBLY - main, front, no longer available, order frame 1336414C92 on page 9-5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - main, order frame assembly

1шт.

2

59051C2

PRODUCT GRAPHIC

DECAL - Warning, keep everyone clear of machine when folding or unfolding wings, wing frame

2шт.

3

1284365C2

REFLECTOR

- amber, front, left-hand side

1шт.

1336413C91

FUNNEL

FRAME ASSEMBLY - main, rear, no longer available, order frame 1336413C92 on page 9-5

1шт.

4

NSS

NOT SOLD SEPARAT

FRAME - main, order frame assembly

1шт.

5

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual, general instructions

1шт.

6

1284374C1

REFLECTOR,Reflector Red

- red, rear

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

12

854542C4

TUBE ASSY.

SUPPORT - wing frame, left-hand, front

1шт.

13

854543C3

TUBE ASSY.

SUPPORT - wing frame, right-hand, front

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

16

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT - support retaining, 5/8 inch NC

2шт.
