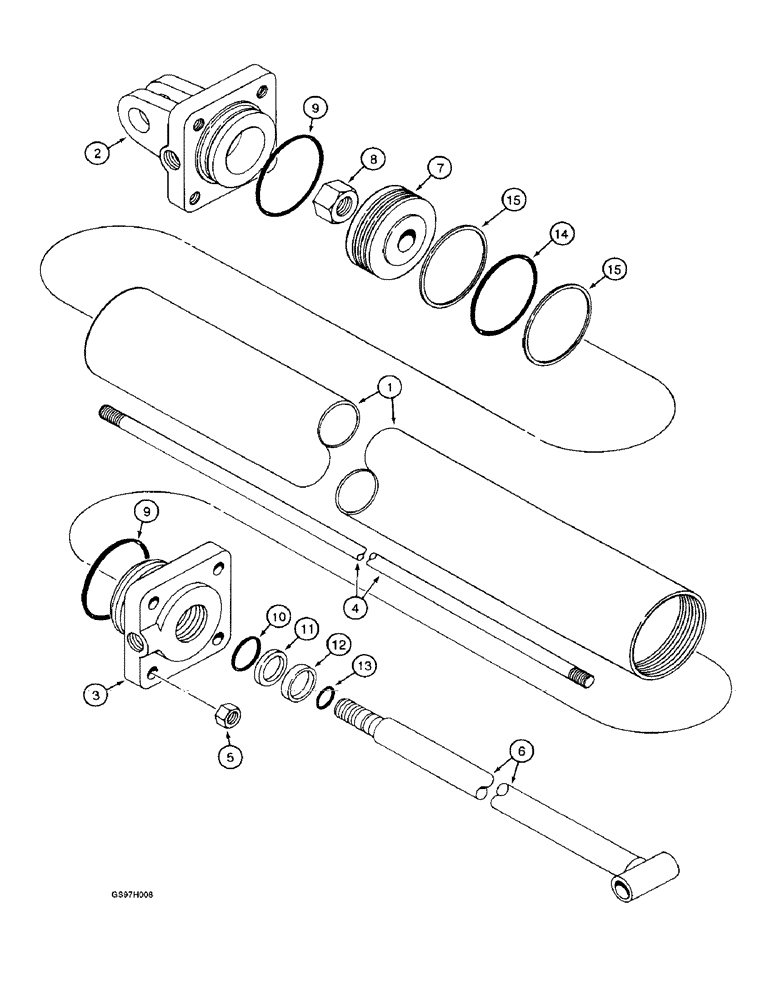

Запчасти Case IH 4800 (8-16) - WING LIFT CYLINDER (08) - HYDRAULICS

810665C91

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 866 mm (34 inch) stroke, no longer available, order cylinder assembly 1285753C94, parts list page 8-15

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly

1шт.

2

813419C1

END

CAP - end, closed end

1шт.

3

813429C1

END

GLAND - cylinder

1шт.

4

813430C1

ROD,1/2" - 13 x 38 1/4"

BOLT - cylinder tie

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

813431C1

ROD

- piston

1шт.

7

813434C1

PISTON

- cylinder

1шт.

8

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (Replaces nut 9413974)

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland and cylinder head, order kit 813435C91

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod, large, order kit 813435C91

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, large piston rod O-ring, order kit 813435C91

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 813435C91

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston rod, small, order kit 813435C91

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston, order kit 813435C91

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring, order kit 813435C91

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

813435C91

SEAL KIT

- seal

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
