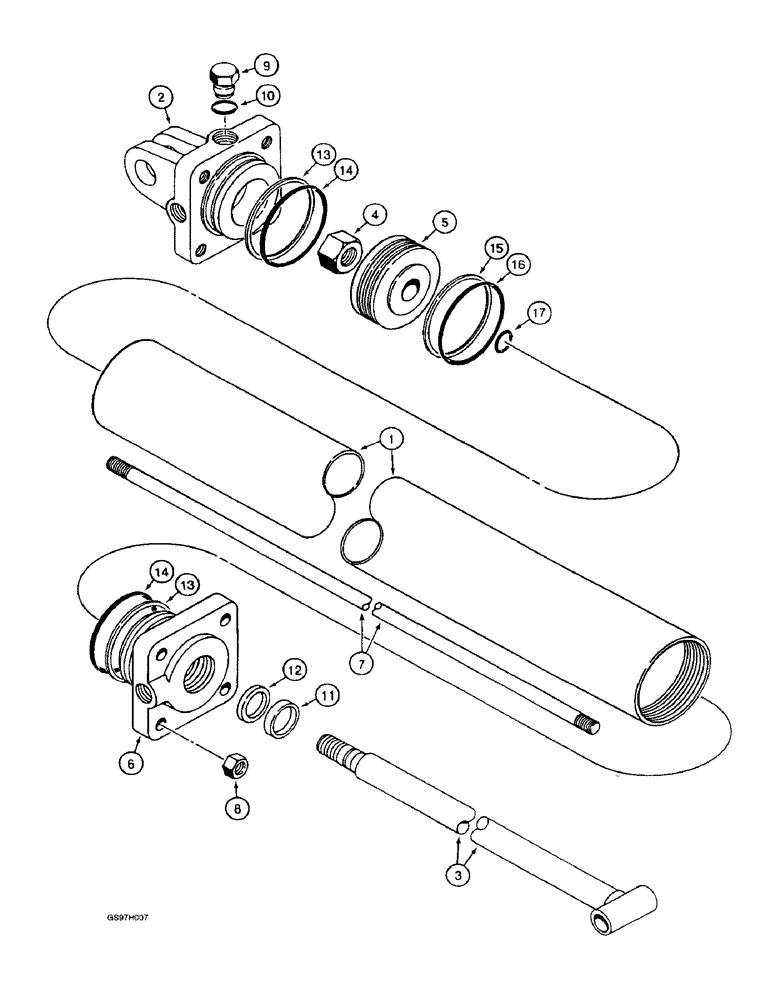

Запчасти Case IH 4800 (8-14) - WING LIFT CYLINDER (08) - HYDRAULICS

1285753C94

CYLINDER

ASSEMBLY - wing lift, 89 (3-1/2) ID x 864 mm (34 inch) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly

1шт.

2

1272825C1

HEAD

- cylinder, two ports, closed end

1шт.

3

1285955C1

ROD

- piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

85179C1

PISTON

- cylinder, used with cylinder assembly 1285753C94

1шт.

5

145422C2

PISTON

- cylinder, used with cylinder assembly 1285753C92

1шт.

6

1272826C1

HEAD

GLAND - cylinder

1шт.

7

1285832C1

TIE-ROD

BOLT - cylinder tie

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - plug, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, gland and cylinder head O-ring, order kit 84919C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - gland and cylinder head, order kit 84919C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston rod to piston, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

84919C2

GASKET KIT

KIT - seal, includes all items with asterists and two (2) wear rings not used on this cylinder assembly

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
