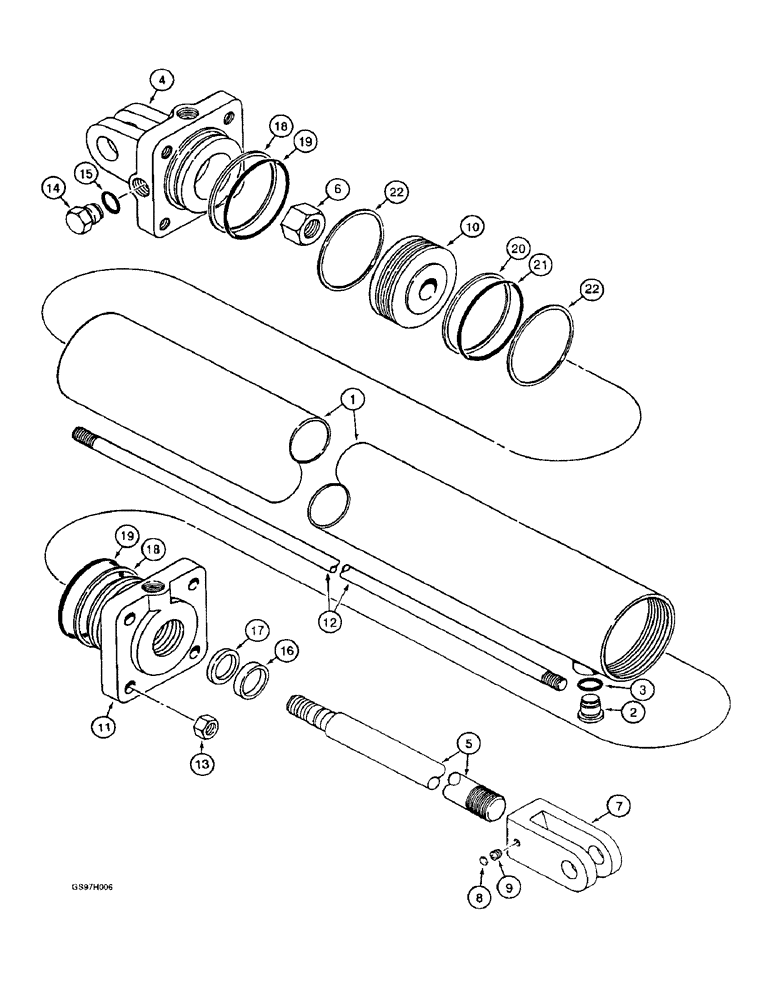

Запчасти Case IH 4800 (8-12) - WING FRAME DEPTH CONTROL CYLINDER (08) - HYDRAULICS

1282322C93

CYLINDER

ASSEMBLY - wing frame depth control cylinder, 83 (3-1/4) ID x 203 mm (8 inch) stroke

2шт.

87423770R

REMAN-HYD CYLINDER

4800 CASE IH VIBRA SHANK FIELD CULTIVATOR (9/87-), Reman for New P/N 1282322C93

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

1978384C1

HYD TUBE

TUBE - cylinder

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - plug, order kit 80116C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

4

1286314C1

HEAD

GLAND - cylinder, closed end

1шт.

5

145231C1

PISTON ROD

ROD - piston

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces 20268R1) 7/8"-14, GC

1шт.

7

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

10

92519C1

PISTON

- cylinder

1шт.

11

1542886C1

GLAND - cylinder (Rplaces gland 1286313C1)

1шт.

12

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

14

214389

PLUG,3/4" - 16 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - plug, order kit 80116C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 80116C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, order kit 80116C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, gland and cylinder head O-ring, order kit 80116C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - gland and cylinder head, order kit 80116C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 80116C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - piston, order kit 80116C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

22

NSS

NOT SOLD SEPARAT

RING - wear, piston, order kit 80116C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

80116C2

GASKET KIT

KIT - seal

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
