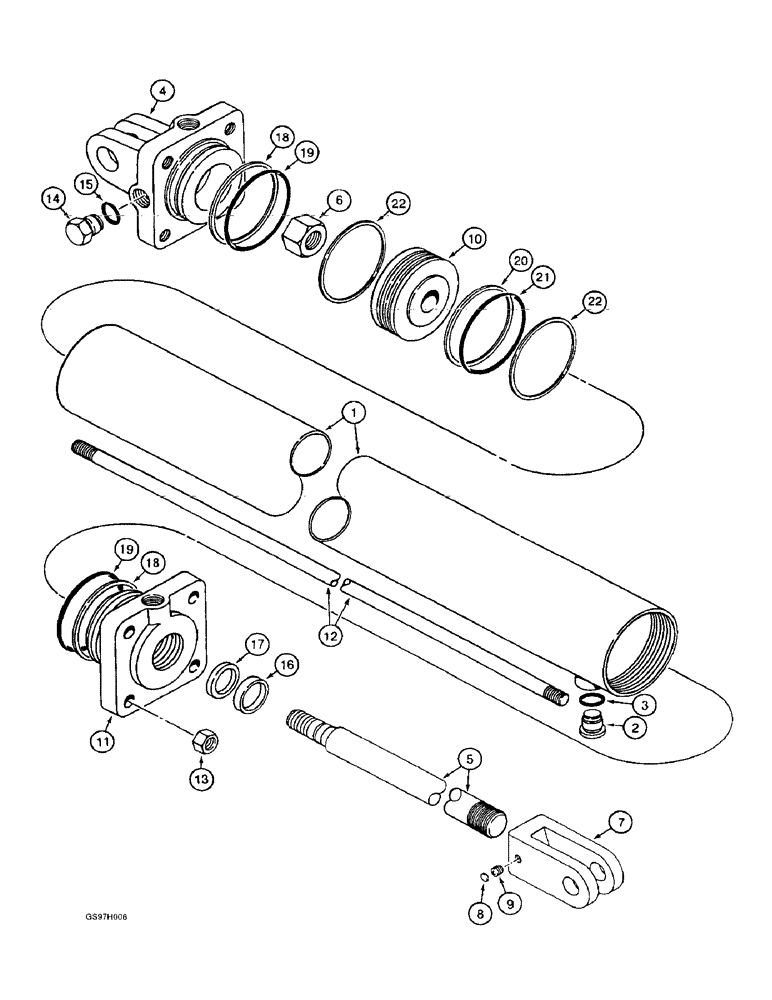

Запчасти Case IH 4800 (8-10) - MAIN FRAME DEPTH CONTROL CYLINDER (08) - HYDRAULICS

1282324C93

CYLINDER

ASSEMBLY - main frame depth control, 89 (3-1/2) ID x 203 mm (8 inch) stroke

2шт.

84255910R

REMAN-HYD CYLINDER

4800 (9/87-), Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

145424C2

HYD TUBE,3.5" ID, 10.167" Length

TUBE ASSEMBLY - cylinder

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

4

1272825C1

HEAD

- cylinder, two ports, closed end

1шт.

5

145231C1

PISTON ROD

ROD - piston

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces 20268R1) 7/8"-14, GC

1шт.

7

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

10

85179C1

PISTON

- cylinder

1шт.

11

1272826C1

HEAD

GLAND - cylinder

1шт.

12

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

14

214389

PLUG,3/4" - 16 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - plug, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, gland and cylinder head O-ring, order kit 84919C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - gland and cylinder head, order kit 84919C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal, order kit 84919C2

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

22

NSS

NOT SOLD SEPARAT

RING - wear, piston, order kit 84919C2

2шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

84919C2

GASKET KIT

KIT - seals for 1282324C93

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.

84332697

SEAL KIT

KIT - seals for 84255910

1шт.

NOTE: The cylinder assembly part number is stamped on the cylinder tube.

1шт.
