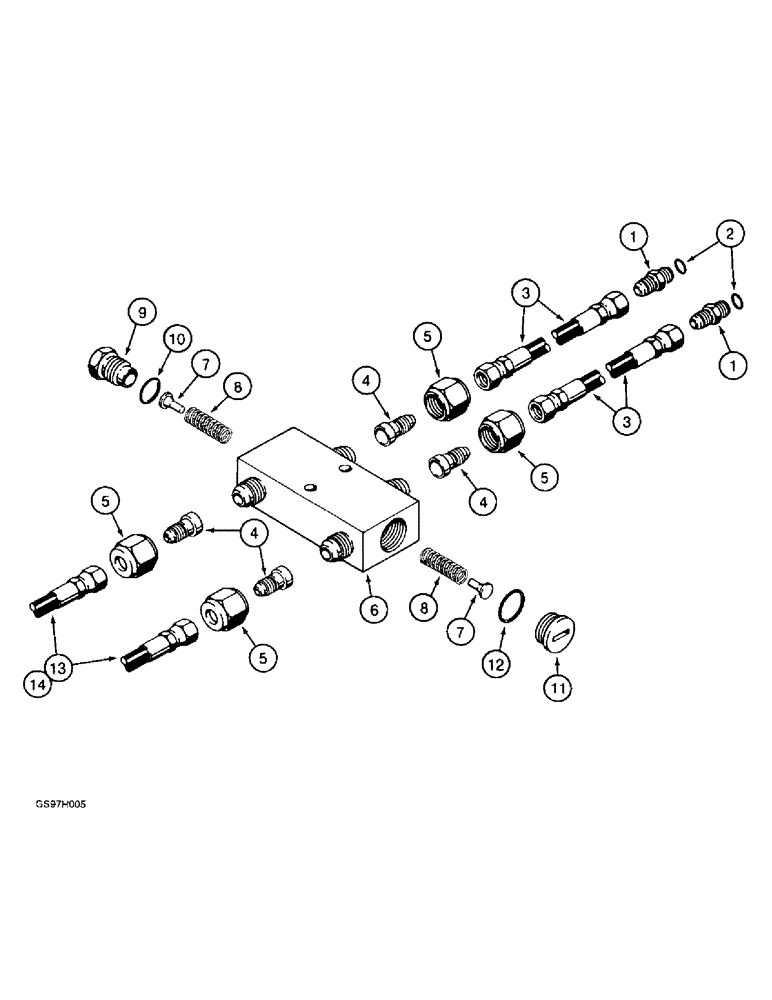

Запчасти Case IH 4800 (8-08) - LOAD CHECK VALVE HYDRAULIC CIRCUIT, USED WHEN UNIT IS OPERATED BY TRACTORS WITHOUT CHECK VALVE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, if used

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1284323C1

HYDRAULIC HOSE

HOSE - tractor to check valve, 381 mm (15 inch) long

2шт.

4

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - reducing, 5/8 tube OD x 9/16-18 inch flare, special

4шт.

5

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, 7/8 inch NF, special (Replaces nut 9403529)

4шт.

142864C95

VALVE

ASSEMBLY - load check, alternating

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - check valve, order valve assembly 142864C95

1шт.

7

85145C1

PIN

- ball retaining

2шт.

8

372649R1

SPRING

- check valve

2шт.

9

NSS

NOT SOLD SEPARAT

PLUG - hex head, centering spring

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - round head, check valve, order valve assembly 142864C95

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

1284331C1

HOSE ASSY.

HOSE - check valve to tee, depth control hydraulic circuit supply and return, 3/8 inch ID x 7874 mm (310 inch) long, if used

2шт.

14

1284263C1

HYDRAULIC HOSE

HOSE - check valve to tee, depth control hydraulic circuit supply and return, 7240 mm (285 inch) long, if used

2шт.
