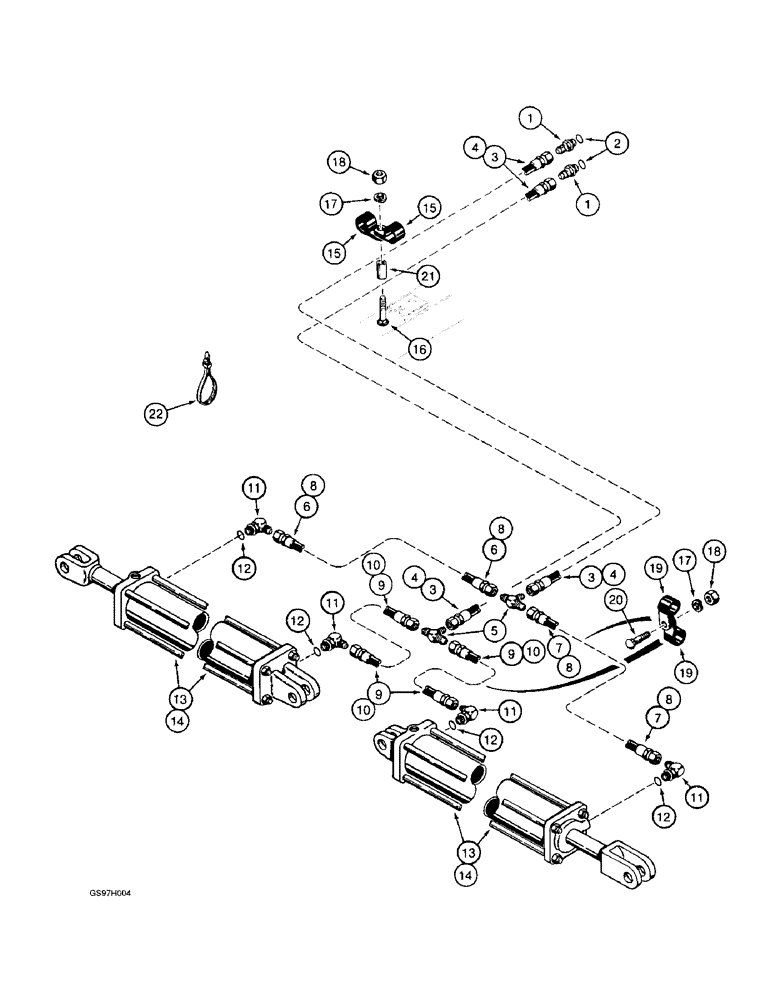

Запчасти Case IH 4800 (8-06) - WING LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, if used

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1284331C1

HOSE ASSY.

HOSE - tractor to tee, supply and return, 7874 mm (310 inch) long, if used

2шт.

4

1284263C1

HYDRAULIC HOSE

HOSE - tractor to tee, supply and return, 7240 mm (285 inch) long, if used

2шт.

5

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

6

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

- Tee to wing frame lift cylinder, LH, Rod end, if used 6.35 mm ID x 1525.00 mm

1шт.

7

810604C1

HYDRAULIC HOSE

HOSE - tee to wing frame lift cylinder, right-hand, rod end, 735 mm (29 inch) long, if used

1шт.

8

147876C1

HYDRAULIC HOSE

HOSE - tee to wing frame lift cylinder, rod end, right-hand and left-hand, 1143 mm (45 inch) long, if used

2шт.

9

810604C1

HYDRAULIC HOSE

HOSE - tee to wing frame lift cylinder, closed end, 735 mm (29 inch) long, if used

2шт.

10

147777C2

HYDRAULIC HOSE,6.40 mm ID x 280.00 mm

Tee to Wing Frame Lift Cyinder, Closed End, If Used 6.40 mm ID x 280.00 mm

2шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

1285753C94

CYLINDER

ASSEMBLY - wing frame lift, 89 (3-1/2) ID x 866 mm (34 inch) stroke, parts list page 8-15, if used

2шт.

14

810665C91

CYLINDER

ASSEMBLY - wing frame lift, 89 (3-1/2) ID x 866 mm (34 inch) stroke, parts list page 8-17, if used

2шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Two per bolt 5/8", Insul, 3/8" Bolt

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID, used only if unit has item 6, 7 and 9 hoses

1шт.

20

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, , Used with clamp 299406C1, item 19 Short NK, 3/8"-16 x 2", G5

1шт.

21

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch, if used

1шт.

22

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, hose (Replaces strap 813579C1)

1шт.
