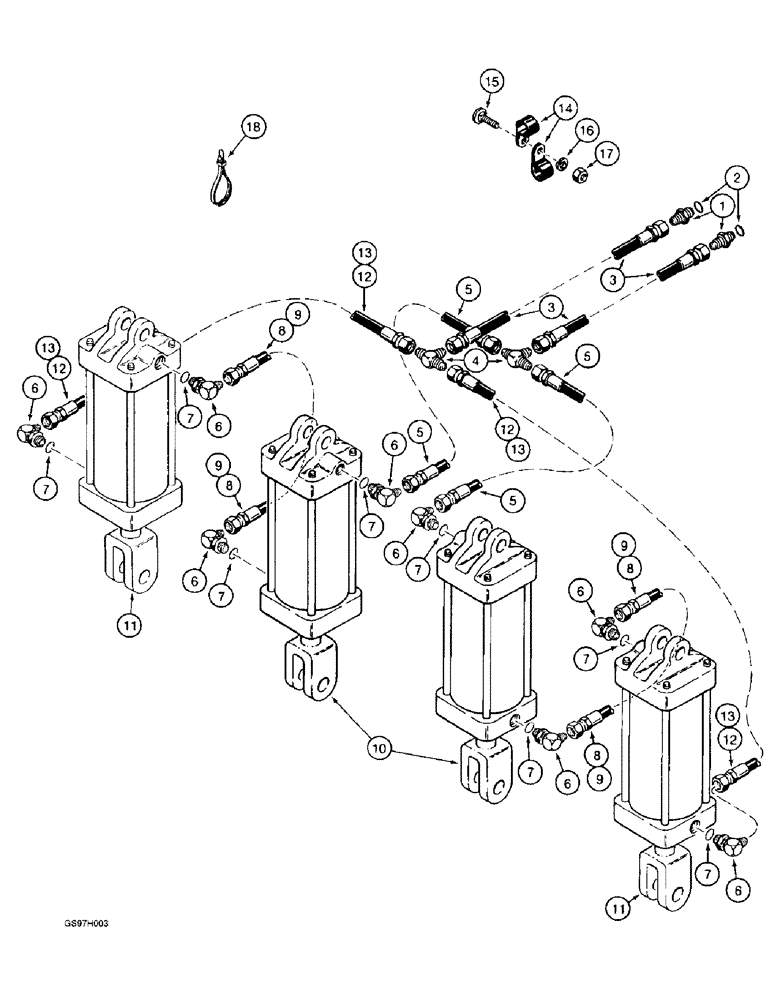

Запчасти Case IH 4800 (8-04) - DEPTH CONTROL HYDRAULIC CIRCUIT, CYLINDERS WITH PORTS FACING TO THE SIDES (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, if used

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

133933C2

HYDRAULIC HOSE

HOSE - tractor to tee, supply and return, 6604 mm (260 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

5

1285380C2

HYDRAULIC HOSE

HOSE - tee to main frame depth control cylinder, left-hand and right-hand, closed end, 1270 mm (50 inch) long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

HOSE - main frame depth control cylinder, rod end, to wing frame depth control cylinder, closed end, 2415 mm (95 inch) long, used on 23 through 26 foot wide units

2шт.

9

1301350C2

HYDRAULIC HOSE

HOSE - main frame depth control cylinder, rod end, to wing frame depth control cylinder, closed end, 3048 mm (120 inch) long, used on 27 through 32 foot wide units

2шт.

10

1282324C93

CYLINDER

ASSEMBLY - main frame depth control, 89 (3-1/2) ID x 203 mm (8 inch) stroke, parts list page 8-11

2шт.

84255910R

REMAN-HYD CYLINDER

4800 (9/87-), Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

11

1282322C93

CYLINDER

ASSEMBLY - wing frame depth control, 83 (3-1/4) ID x 203 mm (8 inch) stroke, parts list page 8-13

2шт.

87423770R

REMAN-HYD CYLINDER

4800 CASE IH VIBRA SHANK FIELD CULTIVATOR (9/87-), Reman for New P/N 1282322C93

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

12

1284303C1

HYDRAULIC HOSE

HOSE - tee to wing frame depth control cylinder, rod end, right-hand and left-hand, 3683 mm (145 inch) long, used on 23 through 26 foot wide units

2шт.

13

1284254C1

HYDRAULIC HOSE

HOSE - tee to wing frame depth control cylinder, rod end, right-hand and left-hand, 4318 mm (170 inch) long, used on 27 through 32 foot wide units

2шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Two per bolt 5/8", Insul, 3/8" Bolt

1шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.
