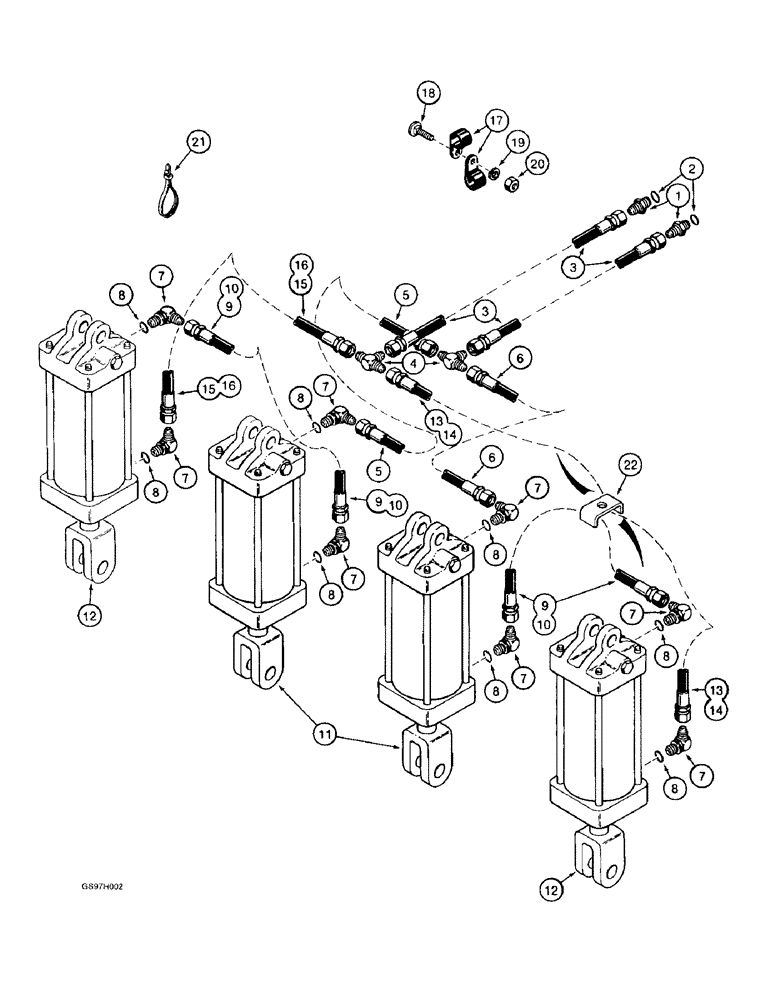

Запчасти Case IH 4800 (8-02) - DEPTH CONTROL HYDRAULIC CIRCUIT, CYLINDERS WITH PORTS FACING THE FRONT OF THE UNIT (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, if used

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1284331C1

HOSE ASSY.

HOSE - tractor to tee, supply and return, 7874 mm (310 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

5

810570C2

HYDRAULIC HOSE

HOSE - tee to main frame depth control cylinder, left-hand, closed end, 2286 mm (90 inch) long

1шт.

6

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE - tee to main frame depth control cylinder, right-hand, closed end, 1397 mm (55 inch) long

1шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

8шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

- Main frame depth control cylinder, Rod end, To wing frame depth control cylinder, Closed end, Used on 23 through 26 foot wide units 9.52 mm ID x 3810.00 mm

2шт.

10

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - main frame depth control cylinder, rod end, to wing frame depth control cylinder, closed end, 4445 mm (175 inch) long, used on 27 through 32 foot wide units

2шт.

11

1282324C93

CYLINDER

ASSEMBLY - main frame depth control, 89 (3-1/2) ID x 203 mm (8 inch) stroke, parts list page 8-11

2шт.

84255910R

REMAN-HYD CYLINDER

4800 (9/87-), Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

12

1282322C93

CYLINDER

ASSEMBLY - main frame depth control, 83 (3-1/4) ID x 203 mm (8 inch) stroke, parts list page 8-13

2шт.

87423770R

REMAN-HYD CYLINDER

4800 CASE IH VIBRA SHANK FIELD CULTIVATOR (9/87-), Reman for New P/N 1282322C93

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

13

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

- Tee to wing frame depth control cylinder, Rod end, RH, Used on 23 through 26 foot wide units 9.52 mm ID x 3810.00 mm

1шт.

14

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - tee to wing frame depth control cylinder, rod end, right-hand, 4445 mm (175 inch) long, used on 27 through 32 foot wide units

1шт.

15

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE - tee to wing frame depth control cylinder, rod end, left-hand, 4700 mm (185 inch) long, used on 23 through 26 foot wide units

1шт.

16

129764C2

HYDRAULIC HOSE

HOSE - tee to wing frame depth control cylinder, rod end, left-hand, 5461 mm (215 inch) long, used on 27 through 32 foot wide units

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Two per bolt 5/8", Insul, 3/8" Bolt

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

22

1256951C1

CLAMP

- hose, use existing hardware

2шт.
