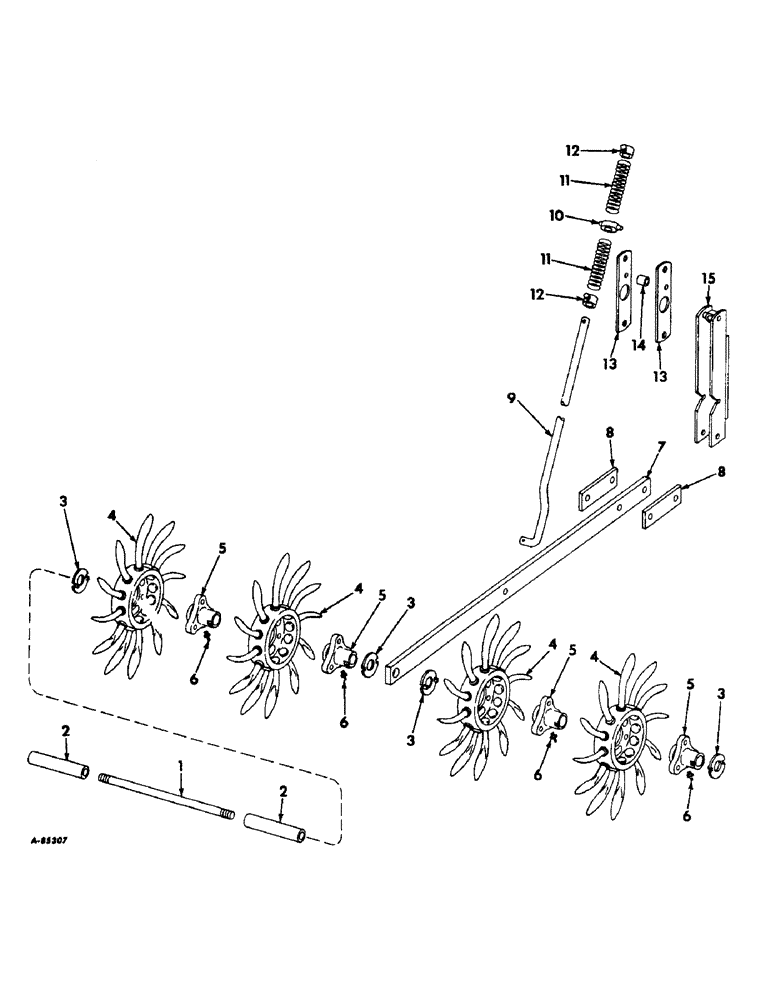

Запчасти Case IH 470 (AA-5[A]) - SHIELD

1

480299R1

ROD, rotary weeder axle

1шт.

220081

NUT

3/4 in.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

552356R1

WASHER

25/32 x 2-1/4 in. x 11 ga

4шт.

2

480300R1

SPACER, rotary wheel hub

2шт.

Q216

WASHER

1-3/32 x 1-3/4 in. x 16 ga

2шт.

3

480301R1

WASHER, rotary wheel hub

4шт.

4

522294R11

WHEEL ASSY, rotary, 12T

4шт.

5

522293R1

HUB, rotary wheel

4шт.

17457R1

BOLT, 3/8 x 1-3/8 in. mach

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Rotary wheel hub 1/8"-27 x .66 lg

4шт.

7

480302R1

BAR, main frame short

1шт.

7

480303R1

BAR, main frame long

1шт.

8

480304R1

BAR, main frame attaching

2шт.

17525R1

BOLT

5/8 x 2 in. mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

480305R1

ROD, rotary wheel support

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

10

468022R1

TRUNNION

support bar

1шт.

11

PO3A

SPRING

pressure

2шт.

12

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, set

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

2шт.

13

480306R1

BAR SUPPORT

2шт.

17574R1

BOLT (SPREADER)

BOLT, 1/2 x 2-1/2 in. mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 in.

1шт.

179827

FRONT AXLE

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

480307R1

SPACER

support bar

1шт.

15

480308R11

BRACKET ASSY, adjusting crank

1шт.

1

468030R11

SUPPORT

ASSY, shield

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

511882R92

SHIELD

ASSY

1шт.

17437R1

BOLT, 3/8 x 1-1/8 in. mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

468032R1

CHAIN (AG)

CHAIN, shield adjusting

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 in. mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

.406 x 1.000 x .056 pln

1шт.
