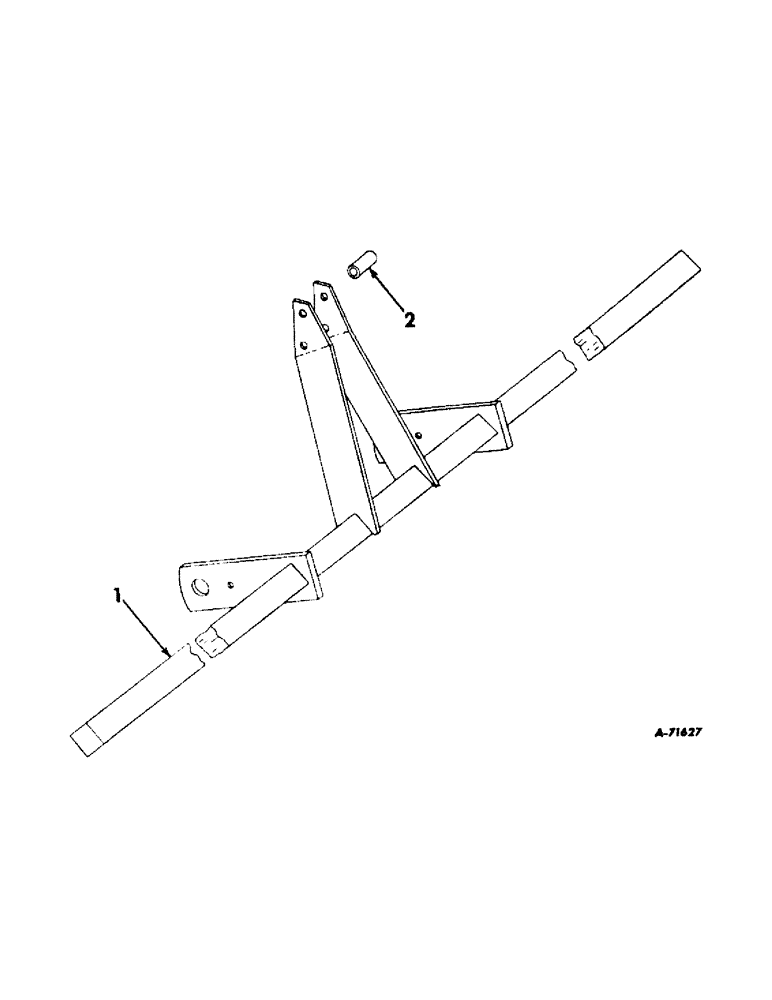

Запчасти Case IH 470 (AA-3) - MAIN FRAME

1

468000R91

FRAME ASSY, main, order 481071R91, notes A and B

1шт.

1

481071R91

FRAME ASSY, main

1шт.

17701R1

BOLT, 3/4 x 3-3/4 in. mach

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

220081

NUT

3/4 in.

1шт.

2

462425R1

SPACER

1шт.

481074R1

BUSHING

2шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

Q3480

WASHER

2шт.

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

495827R1

SPACER,1" Tube x 1/2"

2шт.
