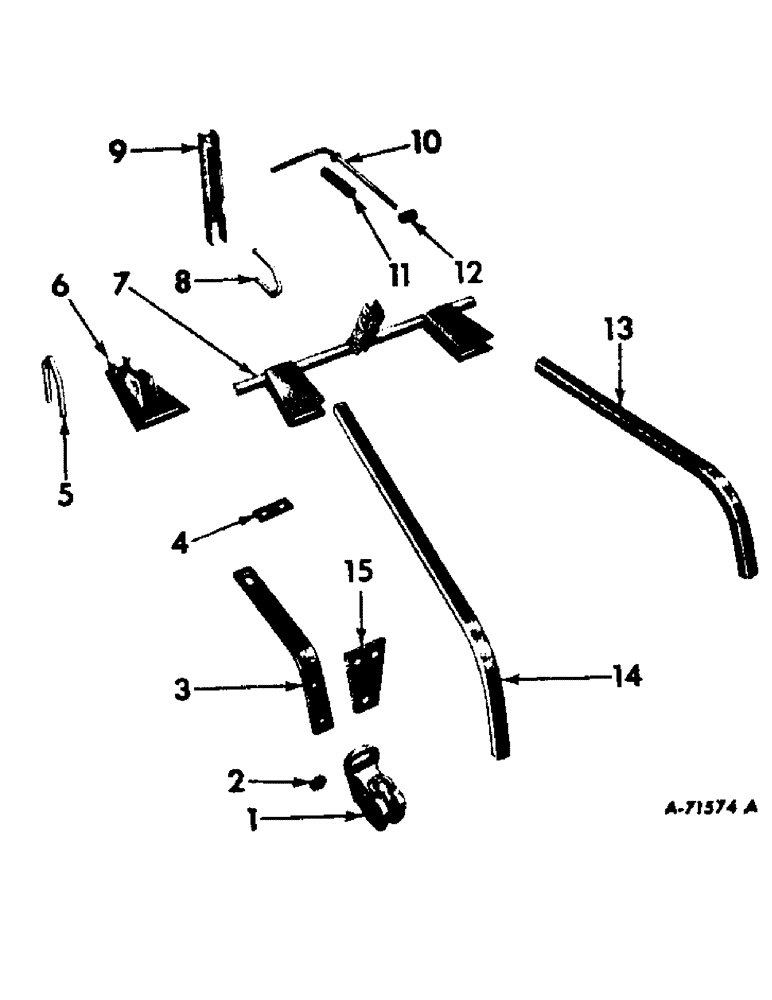

Запчасти Case IH 470 (AA-2) - GANG AND DISK PITCH EXTENSION ATTACHMENT

1

468027R1

BRACKET

standard

1шт.

15075R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 2

BOLT, 5/8 x 2 in. crg, for disk adjusting arm

1шт.

15112R1

BOLT (SPREADER)

BOLT, 5/8 x 2-1/2 in. crg, for shovel adjusting arm

1шт.

102639

NUT,5/8"-11, G5

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 in. cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

523011R1

WASHER

serrated

1шт.

3

468028R1

ARM

disk adjusting

1шт.

102639

NUT,5/8"-11, G5

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4 in. cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

468029R1

BAR

ANCHOR, disk adjusting arm

1шт.

15058R1

BOLT, 5/8 x 1-3/4 in. crg

1шт.

15093R1

BOLT, 5/8 x 2-1/4 in. crg

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12258R1

WASHER

21/32 x 1-1/4 in. x 11 ga

1шт.

5

468015R1

BOLT,3/4" - 10 x 5.4"

U-BOLT, rockshaft bracket

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

6

468012R91

BRACKET ASSY, rockshaft and disk

1шт.

7

468016R21

ROCKSHAFT ASSY, shovel arm

1шт.

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

8

461985R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, adjusting crank bracket

1шт.

102639

NUT,5/8"-11, G5

2шт.

9

468020R11

BRACKET ASSY, adjusting crank

1шт.

10

468023R31

ROD

CRANK ASSY, adjusting

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

11

PO102

SPRING

crank adjusting

1шт.

12

468024R1

PIVOT

SWIVEL, adjusting crank

1шт.

13

468026R1

ARM

shovel adjusting short

1шт.

15126R1

BOLT, 1/2 x 2-3/4 in. crg

1шт.

102637

NUT,1/2"-13, G5

2шт.

102639

NUT,5/8"-11, G5

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 in. cap, Course Threads

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16038R1

WASHER

17/32 x 1 in x 11 ga

2шт.

14

468025R1

ARM

shovel adjusting long

1шт.

15026R1

BOLT, 1/2 x 2-3/4 in. crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

102639

NUT,5/8"-11, G5

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 in. cap, Course Threads

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16038R1

WASHER

17/32 x 1 in. x 11 ga

2шт.

15

477023R1

EXTENSION, arm disk attaching, special

1шт.

15112R1

BOLT (SPREADER)

BOLT, 5/8 x 2-1/2 in. sq-nk crg

1шт.

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

SCREW, 5/8 x 1-1/8 in. cap

1шт.
