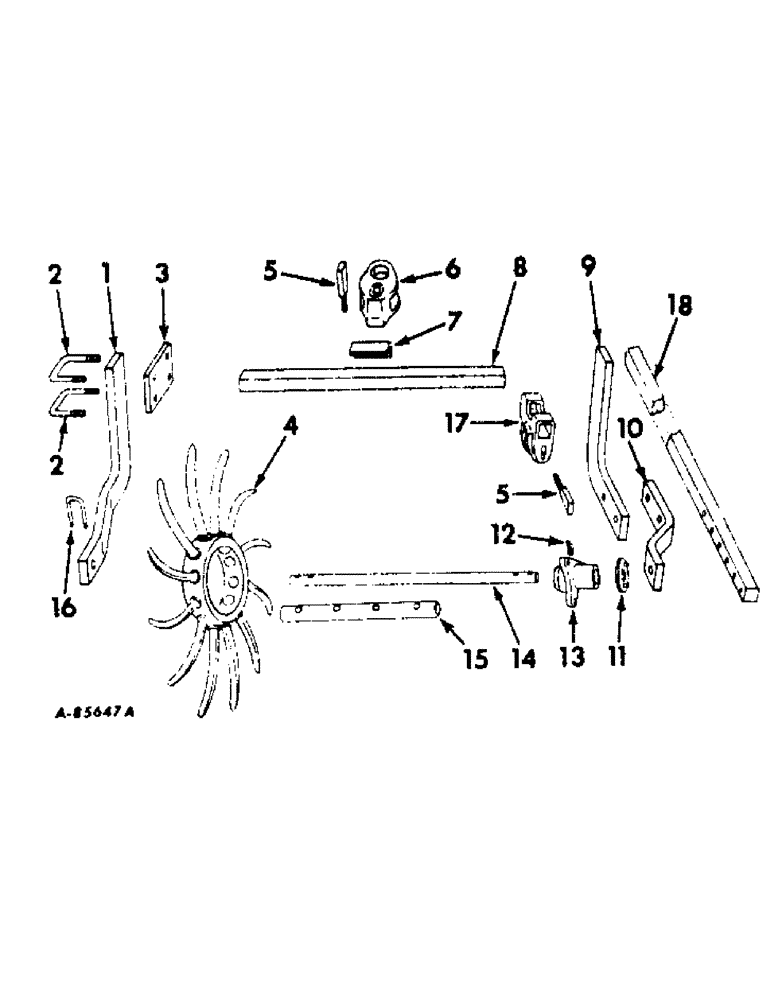

Запчасти Case IH 468 (Y-19) - MINIMUM TILLAGE ATTACHMENT

1

484513R1

ARM, minimum tillage LH

3шт.

1

484514R1

ARM, minimum tillage RH

3шт.

2

516206R1

U-BOLT, attaching arm

16шт.

102637

NUT,1/2"-13, G5

32шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.

3

516211R1

CLIP, U-bolt

8шт.

4

522294R11

WHEEL ASSY, rotary weeder, 12T

16шт.

5

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

long wedge

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

522557R2

CLAMP

1-3/8 in. sq tool bar, for 1-1/4 in. rd std

4шт.

7

461718R1

FILLER, cross tie bar

4шт.

8

461717R1

BAR, cross tie

4шт.

9

484515R1

ARM, minimum tillate strap

2шт.

10

484516R1

BRACKET, minimum tillate strap

2шт.

17552R1

BOLT, 5/8 x 2-1/4 in. mach

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

516447R1

WASHER, wheel hub

8шт.

552356R1

WASHER

25/32 x 2-1/4 in. x 11 ga

8шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

16шт.

13

522293R1

HUB, wheel

16шт.

17457R1

BOLT, 3/8 x 1-3/8 in. mach

48шт.

102635

NUT,3/8"-16, G5

48шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

48шт.

14

461721R1

AXLE, weeder

4шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

8шт.

15

517706R1

SLEEVE, bearing

4шт.

Q216

WASHER

1-1/32 x 1-3/4 in. x 16 ga

12шт.

16

461720R1

PIN, locking

8шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

8шт.

17

522556R1

CLAMP

tool bar extension

8шт.

18

478857R1

TOOL BAR, longer inside, required in place of short inner tool bar, Serial Range: next-tractor

1шт.
